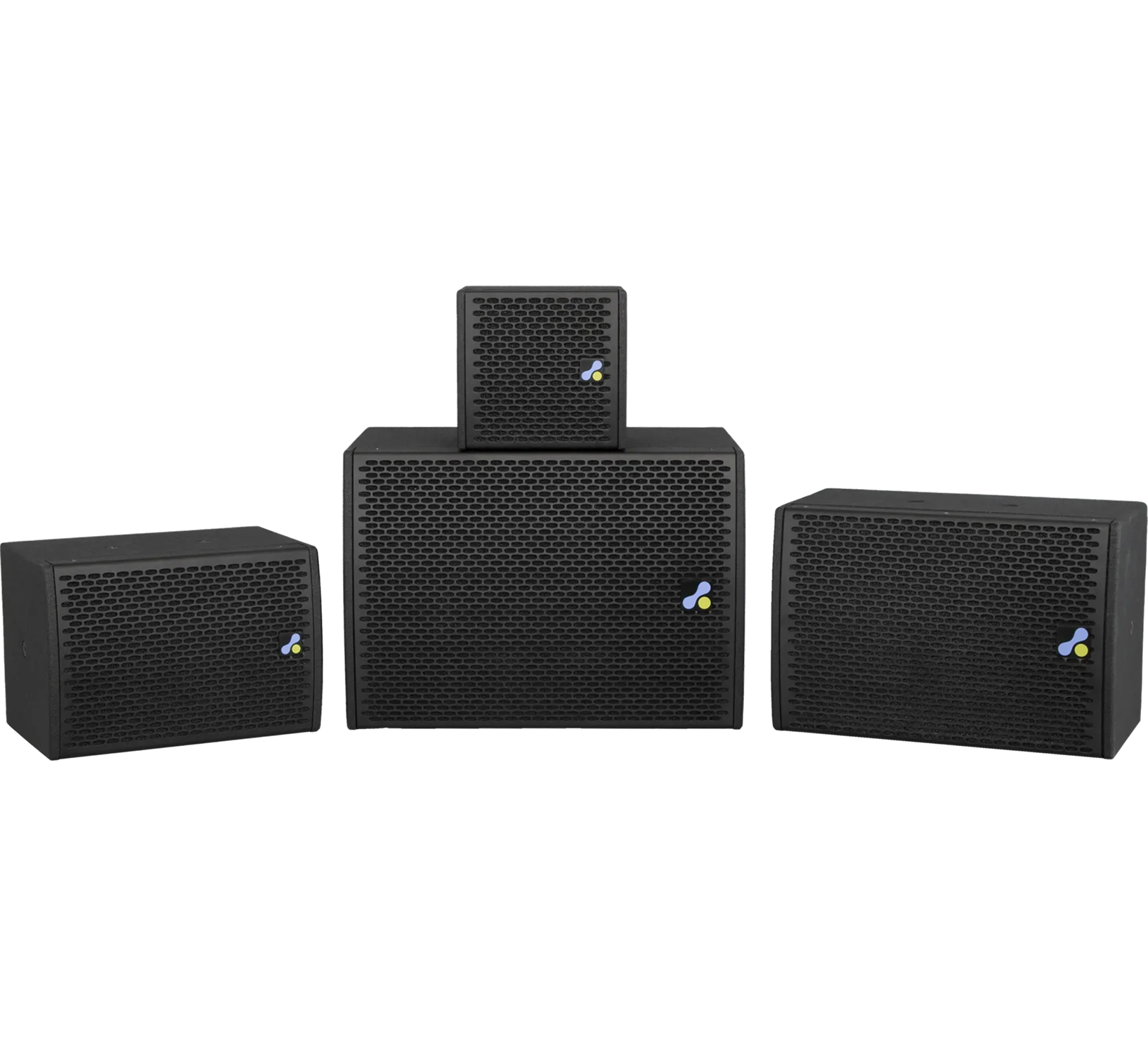

RX Series
//
Passive, 2-Way, Compact Installation Loudspeakers
The RX Series delivers big-system output and broad HF coverage from an ultra-compact enclosure, ideal for tight spaces. Horn-loaded drivers provide clarity and headroom, while LF extension pairs naturally with subs for full-range music reproduction.
Optional Weather Resistance
Products in this Series
RX8
8” Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB

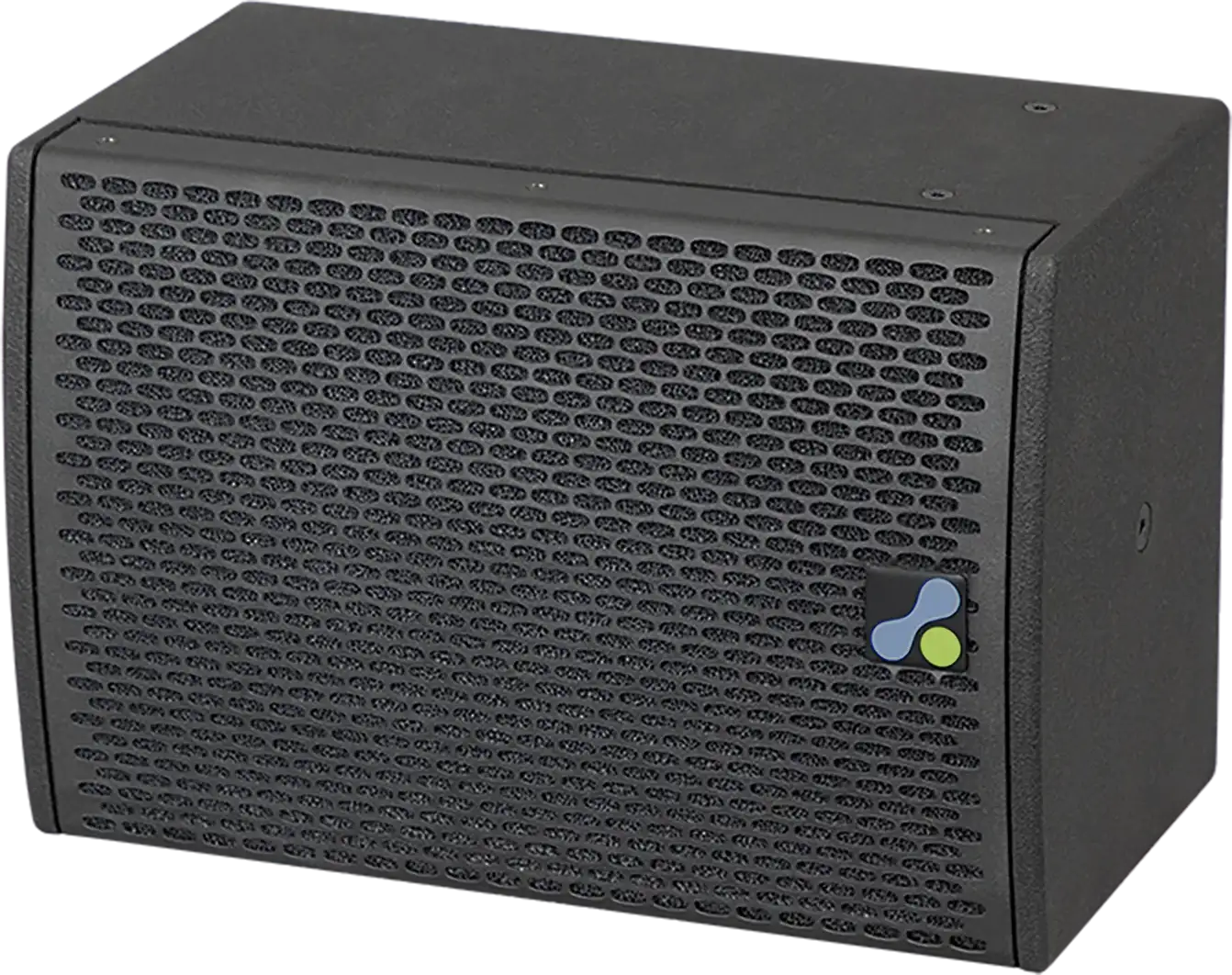

RX6
6.5” Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB

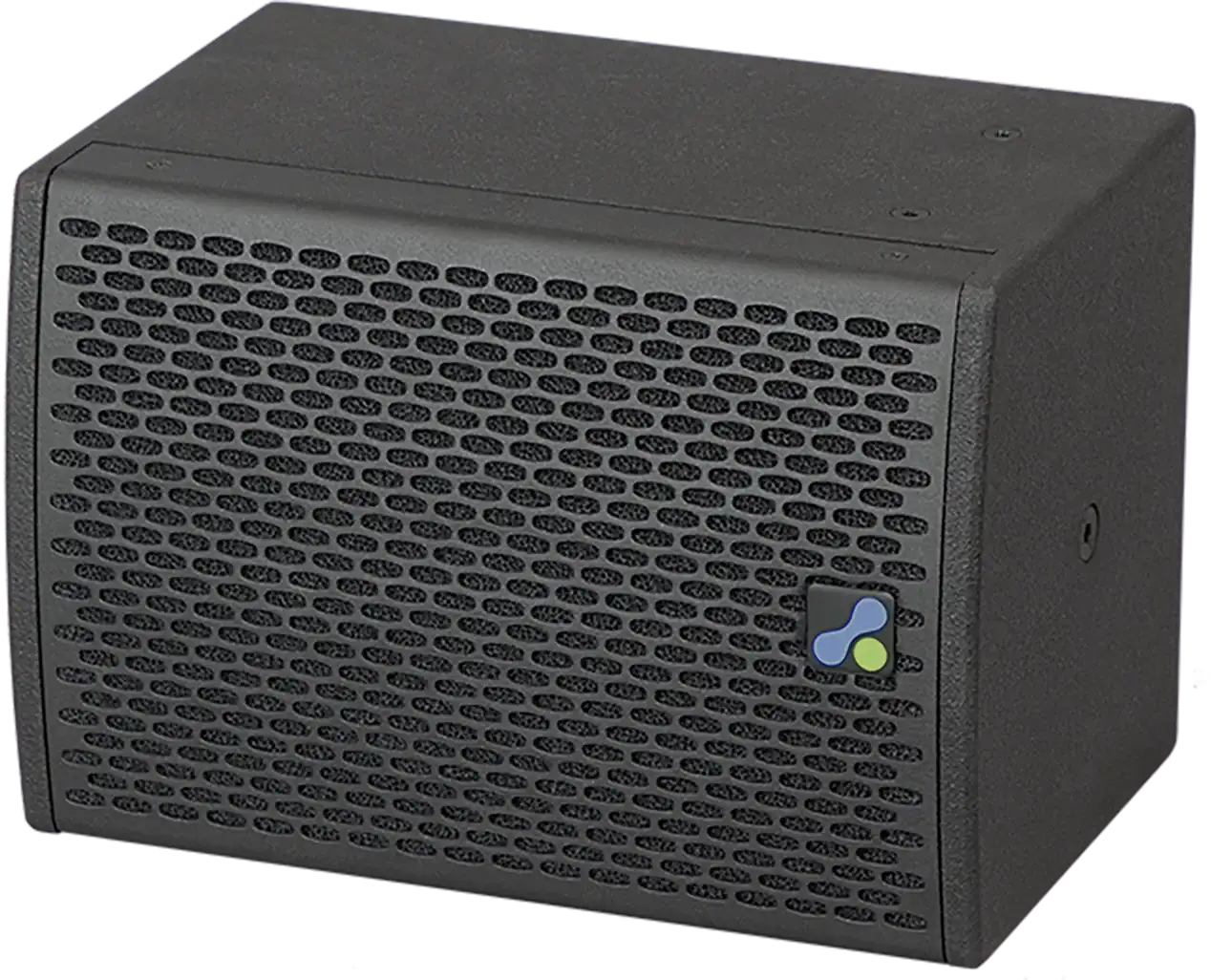

RX5
5.25” Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
RX4
4” Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
Resources
RX Specification
Specification Sheet
RX CAD Data
CAD
RX EASE Data
EASE Data
