GX Series
//
Passive, 2-Way, High-Performance Coaxial Loudspeakers
The GX Series features 12" and 15" coaxial designs with interchangeable horn patterns for tailored coverage. It delivers full-range output with directional consistency and crisp transient response.
TQ™ Processing
Optional Weather Resistance
Products in this Series

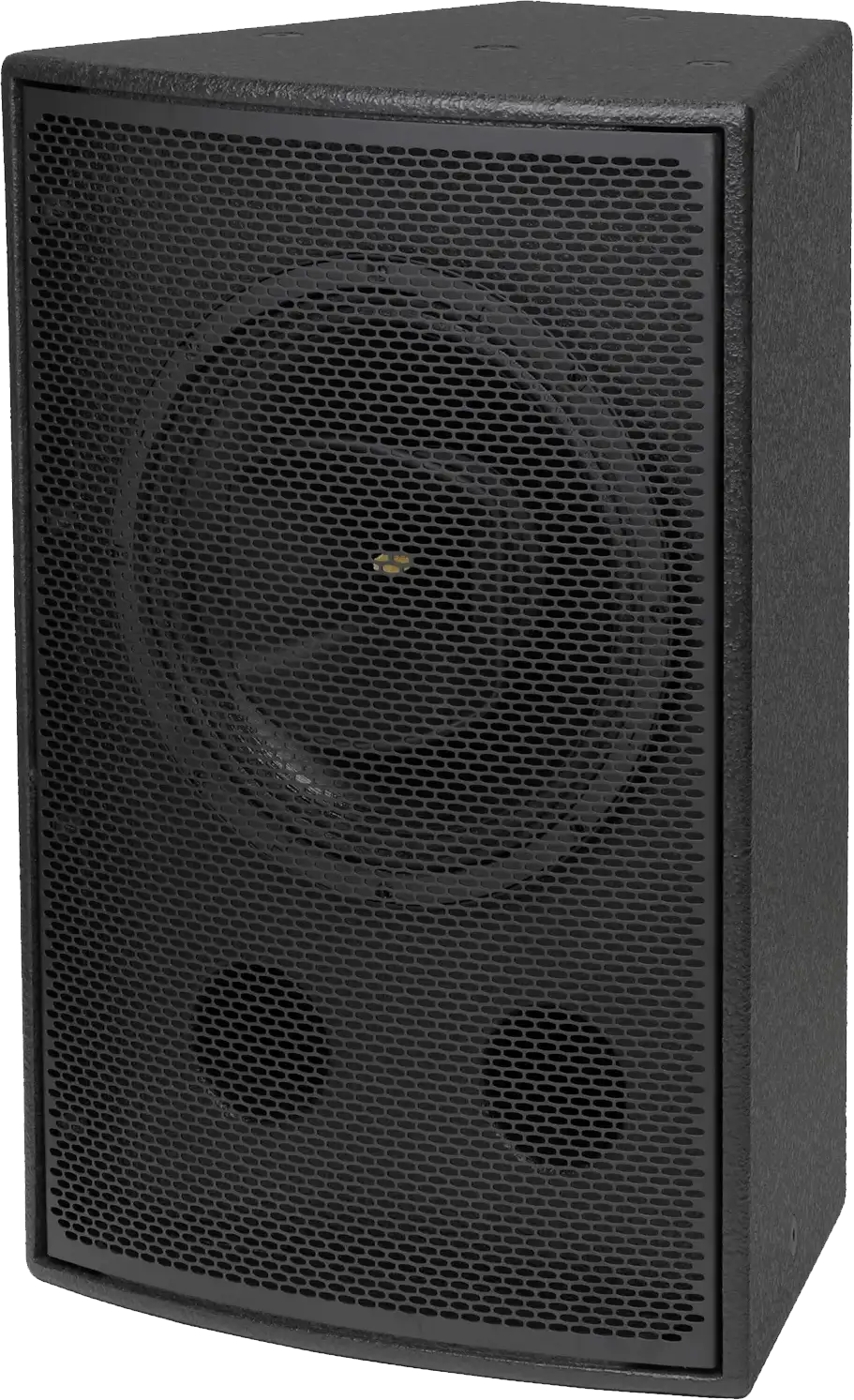

GX12
12” Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB

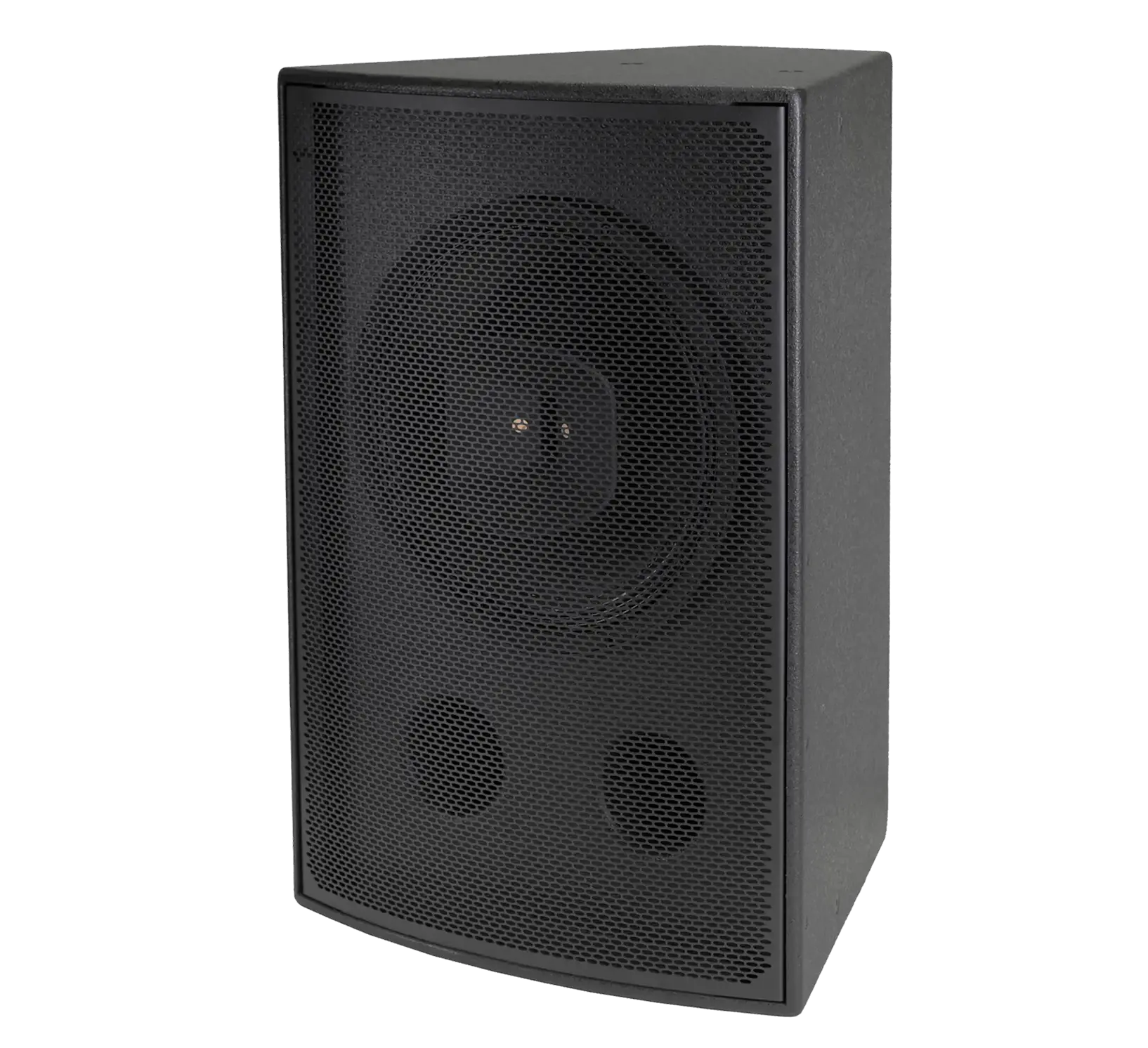

GX15
15” Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
Resources
GX12 Specification
Specification Sheet
GX12 CAD Data
CAD
GX12 Revit BIM Family
BIM
GX12 CLF Data
CLF Data
GX12 SketchUp
SketchUp
GX12 EASE Data
EASE Data
GX15 Specification
Specification Sheet
GX15 CAD Data
CAD
GX15 Revit BIM Family
BIM
GX15 SketchUp
SketchUp
GX15 CLF Data
CLF Data
GX15 EASE Data
EASE Data
