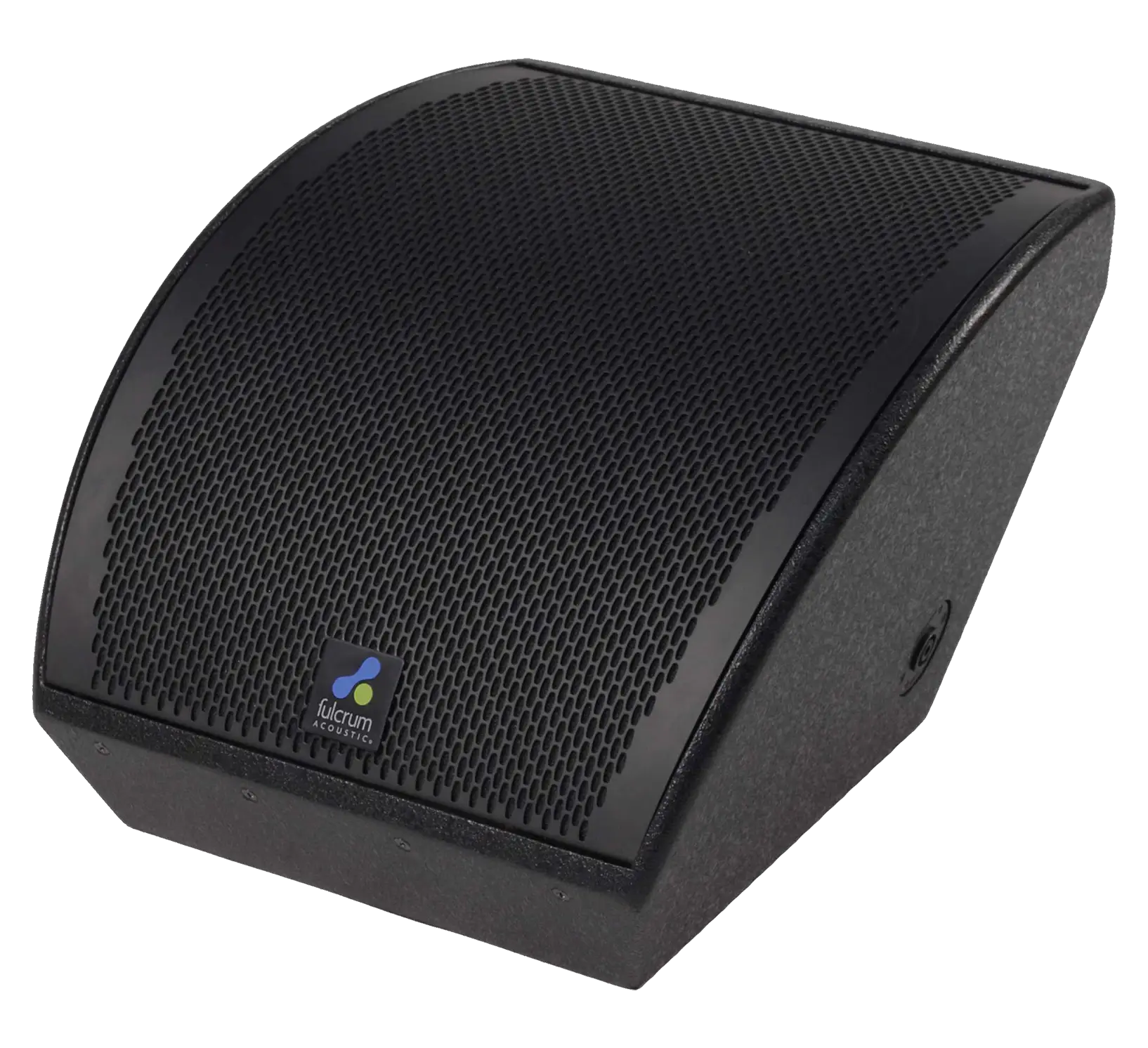

FX Series
//
Coaxial Vocal Monitor
The FX Series offers the output of a two-way monitor in a compact, portable design. Its coaxial configuration delivers wide coverage, strong HF headroom, and focused source separation with minimal visual impact.
Portable
TQ™ Processing
Products in this Series

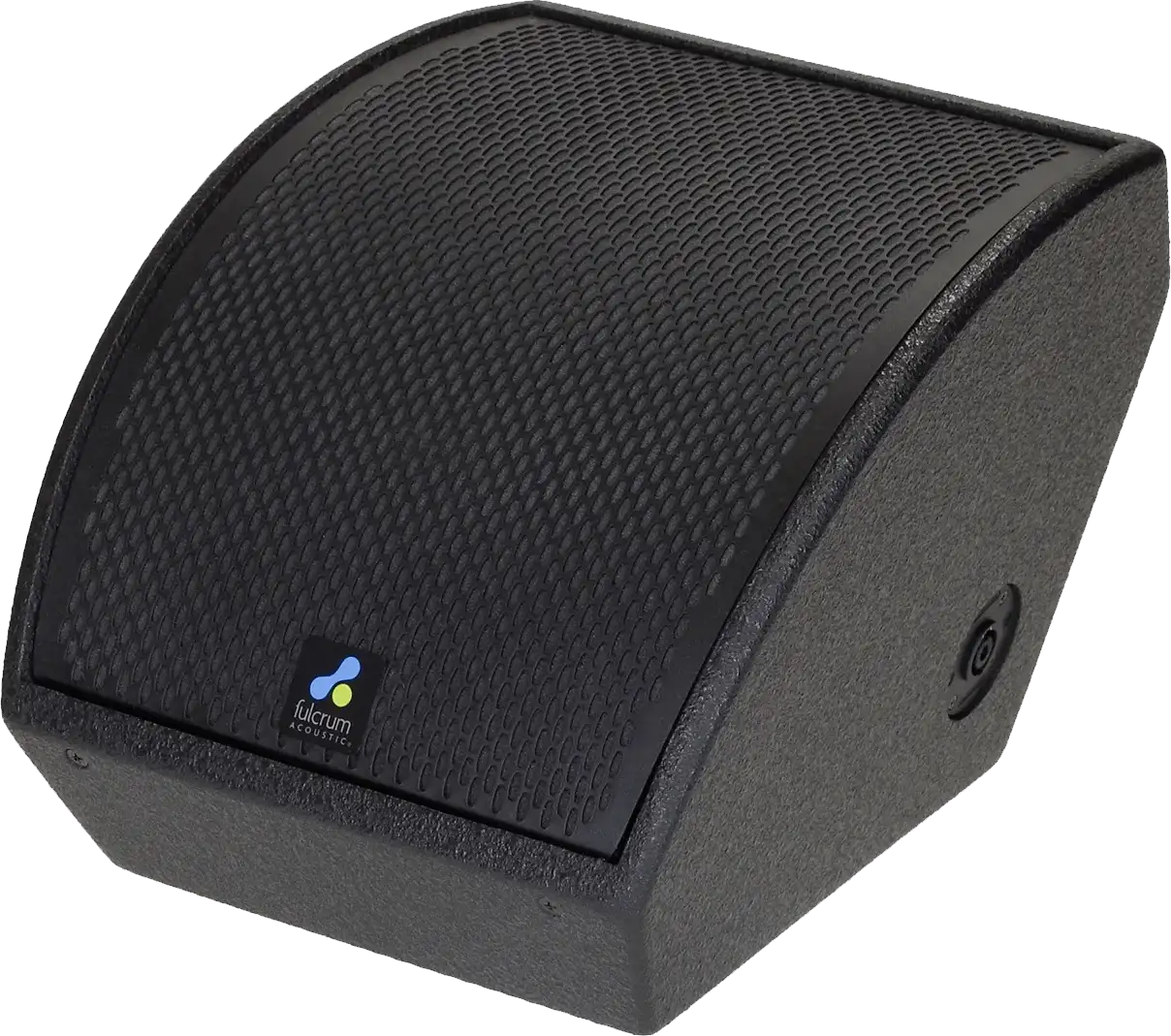

FX896
8” Coaxial Vocal Monitor
Coverage Pattern
90° x 60° rotatable
Operating Range
94 Hz to 21 kHz
HF/LF Transducers
Coaxial 1.7 inch titanium diaphragm compression driver; 8.0 inch woofer, 2.0 inch voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 250 W @ 16 Ω
Equalized Maximum SPL (peak / continuous)
126 dB / 120 dB
Dimensions (H x W x D)
14.26 in x 12.23 in x 10.86 in (362 mm x 311 mm x 276 mm)
Weight
15.0 lbs (6.8 kg)

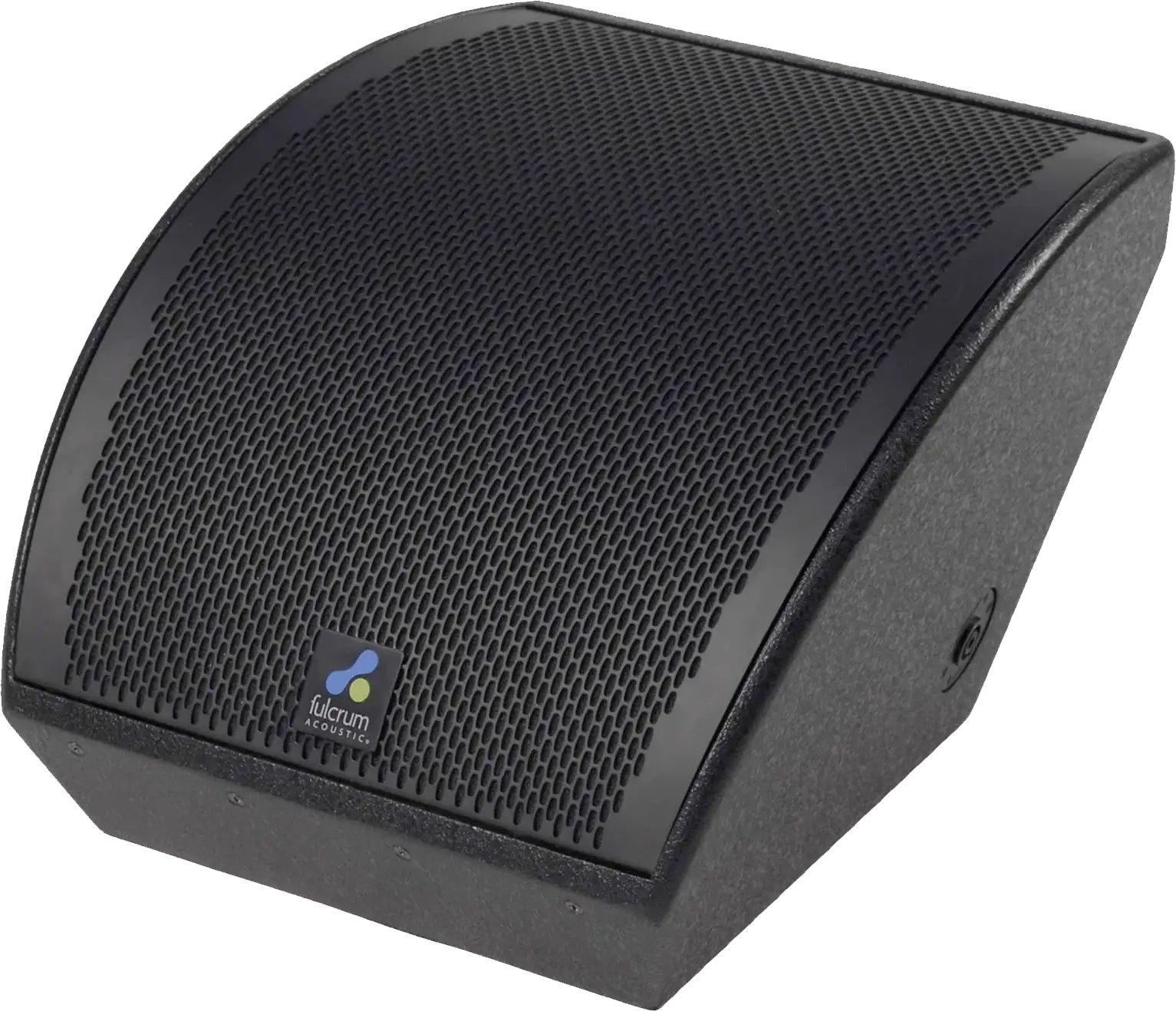

FX1295
12” Coaxial Vocal Monitor
Coverage Pattern
90° x 45° rotatable
Operating Range
90 Hz to 17 kHz
HF/LF Transducers
Coaxial 3.0 inch titanium diaphragm compression driver; 12.0 inch woofer, 3.0 inch voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
132 dB / 126 dB
Dimensions (H x W x D)
17.94 in x 16.22 in x 12.77 in (456 mm x 412 mm x 324 mm)
Weight
25.0 lbs (11.3 kg)
