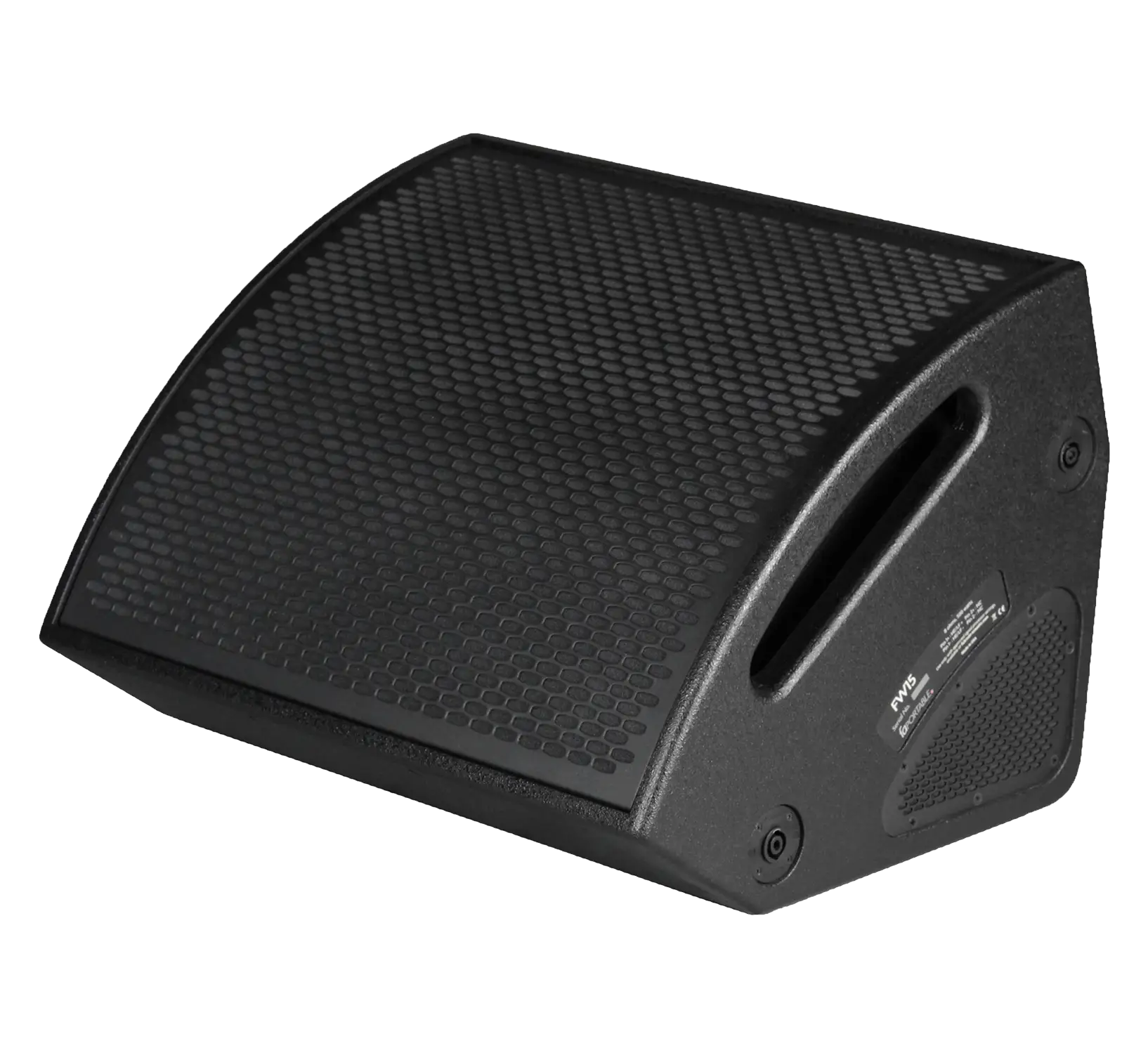

FW Series
//
Coaxial Passive Cardioid Stage Monitor
The FW Series provides tour-grade output and clarity in a low-profile stage monitor. With TQ™ and Passive Cardioid Technology™, it delivers precise coverage and excellent source separation for performers.
Portable
Passive Cardioid Technology™
TQ™ Processing
Products in this Series
FW15
15" Coaxial Cardioid Stage Monitor
Coverage Pattern
75° x 75°
Operating Range
67 Hz to 19 kHz
HF/LF Transducers
Coaxial 3.0 inch titanium diaphragm compression driver; 15.0 inch woofer, 3.5 inch voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 500 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
132 dB / 126 dB
Dimensions (H x W x D)
20.25 in x 22.68 in x 15.09 in (514 mm x 576 mm x 383 mm)
Weight
53.0 lbs (24.0 kg)
