FL Series
//
Dual 8" Compact Subcardioid Line Array Module
The FL Series combines a horn-loaded design with flexible array angles and Passive Cardioid Technology™. Optimized by TQ™ processing, it delivers full-range clarity and directional control in a compact system built for challenging acoustic environments.
Passive Cardioid Technology™
TQ™ Processing
Optional Weather Resistance
Array Optimization
Products in this Series

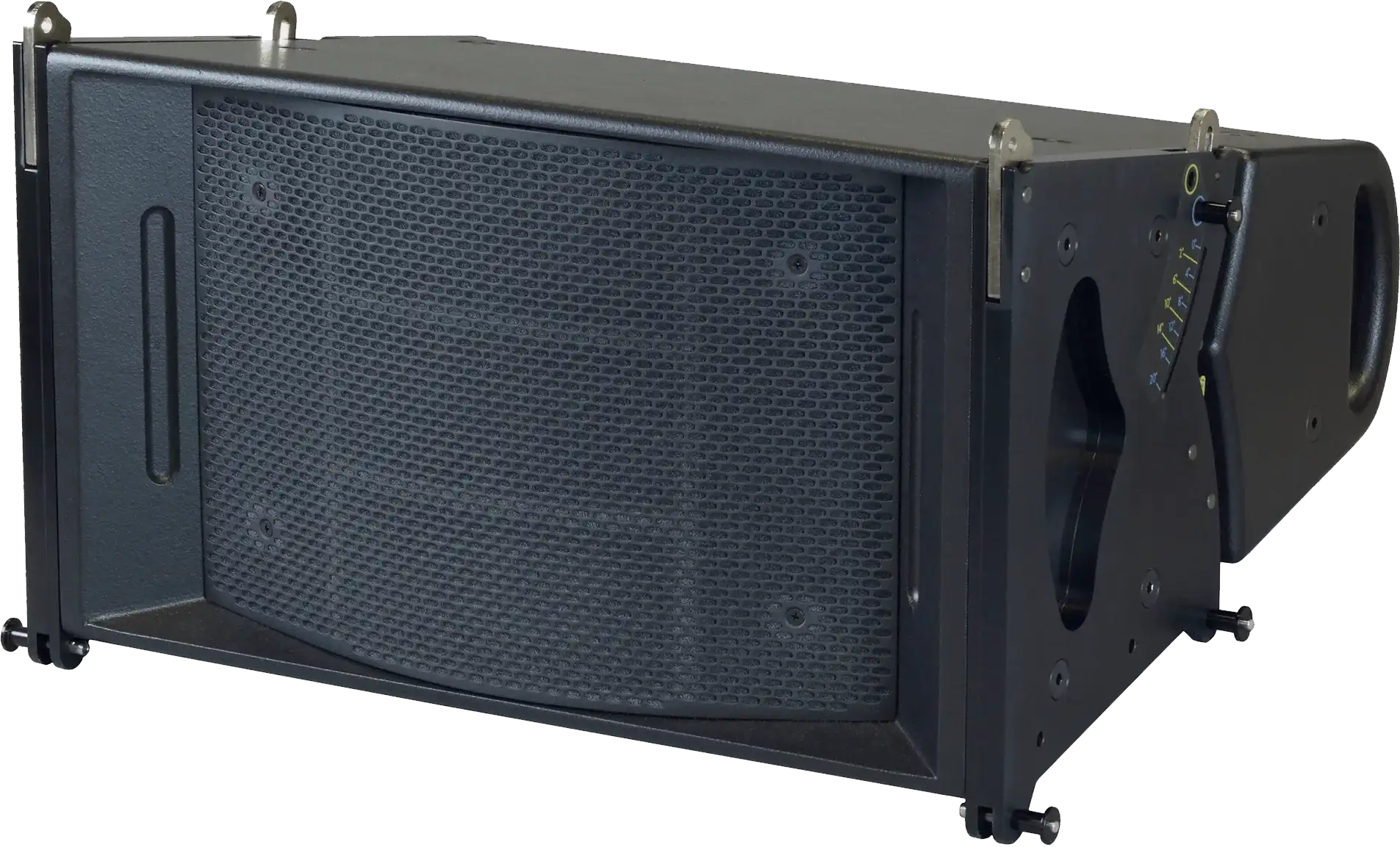

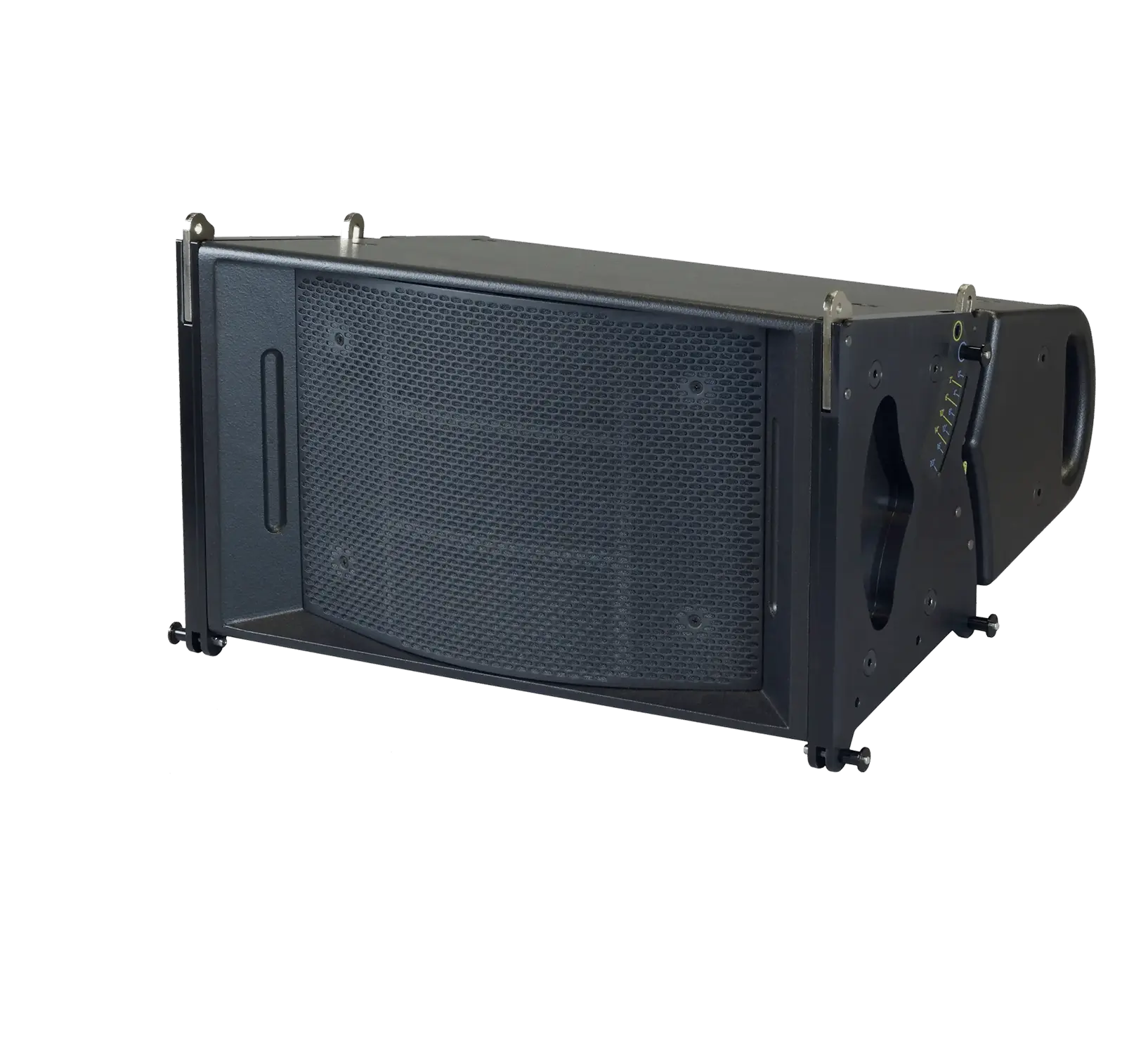

FL283T
Dual 8" Subcardioid Line Array Module
Coverage Pattern
90° horizontal, array dependent vertical
Operating Range
54 Hz to 19.6 kHz
HF/LF Transducers
3x 1.4 inch titanium diaphragm, neodymium magnet compression driver; 2x 8.0 inch ceramic magnet cone driver, 2.0 inch voice coil
Power Handling at Nominal Impedance
HF/LF 500 W @ 16 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB (one module); 146 dB / 140 dB (eight modules)
Dimensions (H x W x D)
14.28 in x 24.56 in x 19.29 in (362 mm x 623 mm x 490 mm)
Weight
66.0 lbs (30.0 kg)
