FA Series
//
Portable, Full-Range, Coaxial Loudspeakers
The FA Series delivers clear, high-output performance in a compact enclosure designed for portable or installed use. Its coaxial configuration, combined with TQ™ processing, enables precise pattern control and consistent coverage across a range of applications.
Portable
Passive Cardioid Technology™
TQ™ Processing
Products in this Series

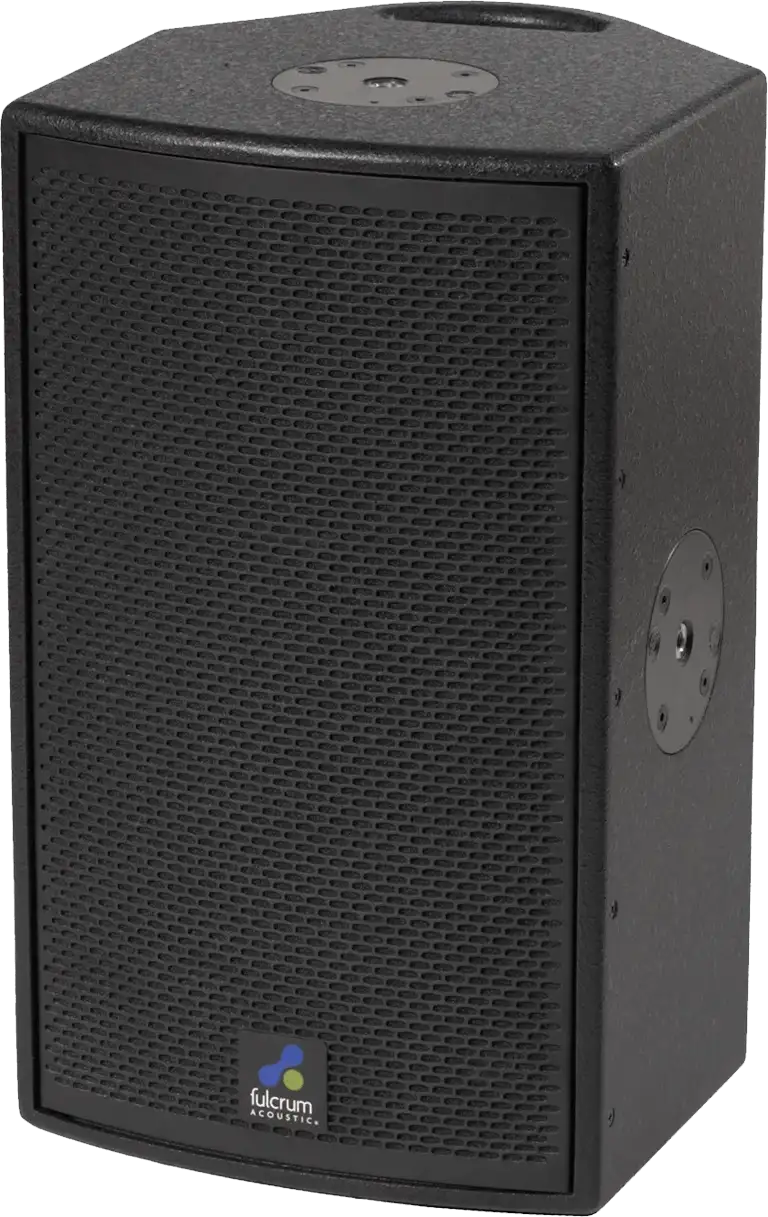

FA28
Dual 8" Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB

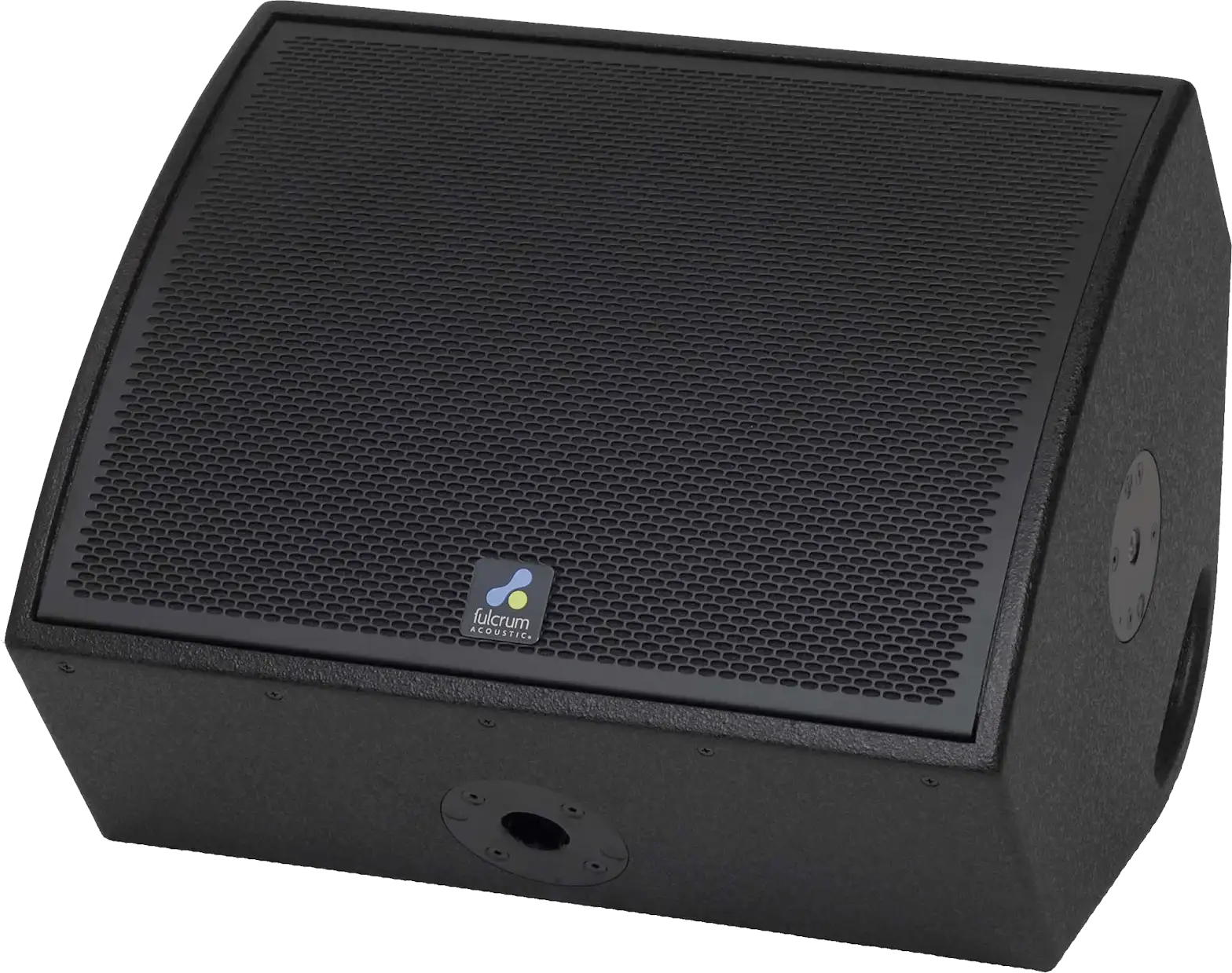

FA12
12" Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB

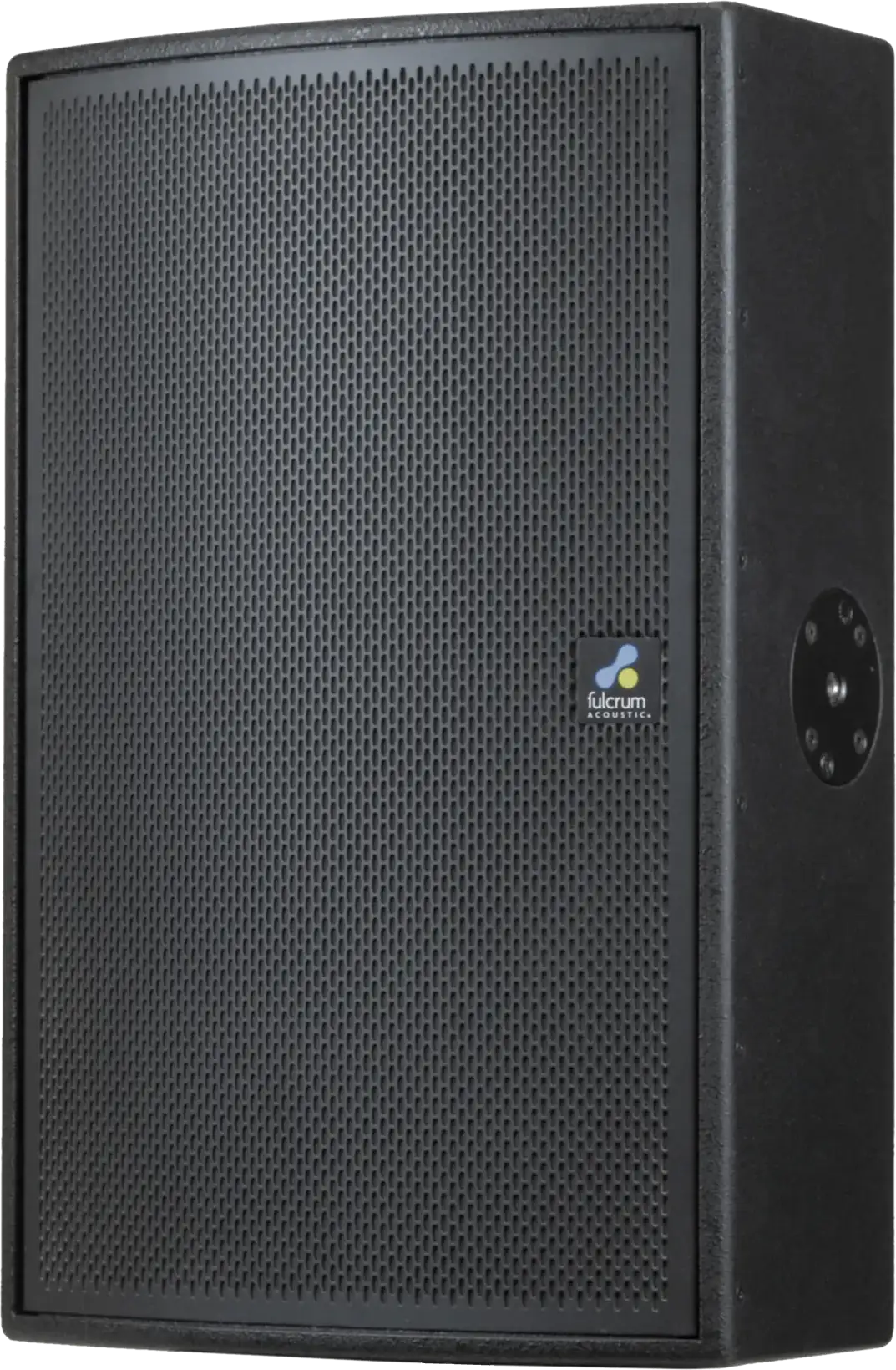

FA22
Dual 12" Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
Resources
FA Specification
Specification Sheet
FA CAD Data
CAD
