DX Series
//
Bi-Amplified, 3-Way Coaxial Loudspeakers
The DX Series leverages dual woofers to improve LF output and vertical pattern control. It delivers the performance of larger systems in a compact enclosure, making it a powerful alternative to conventional two-way loudspeakers.
TQ™ Processing
Rotatable Horn
Optional Weather Resistance
Products in this Series

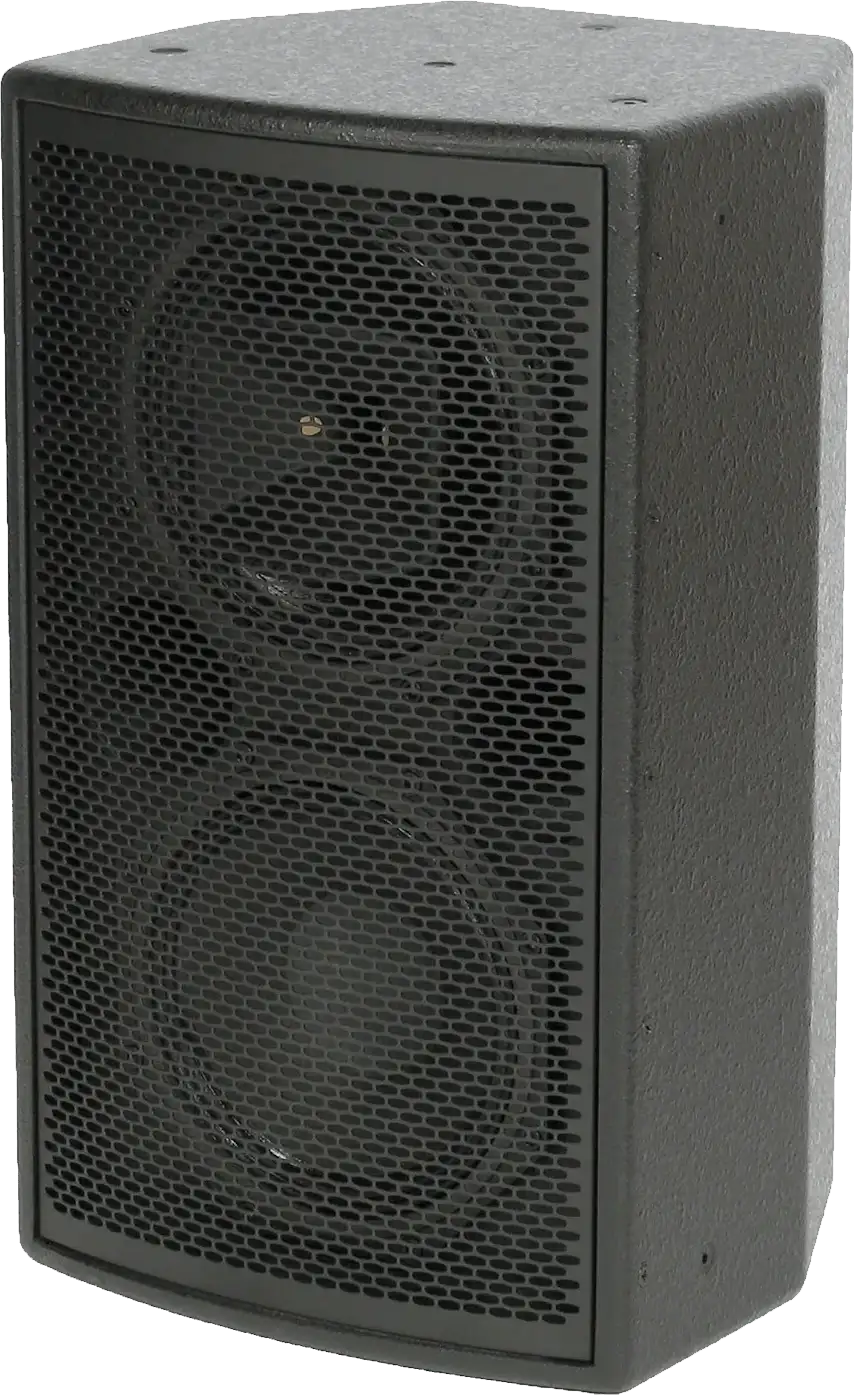

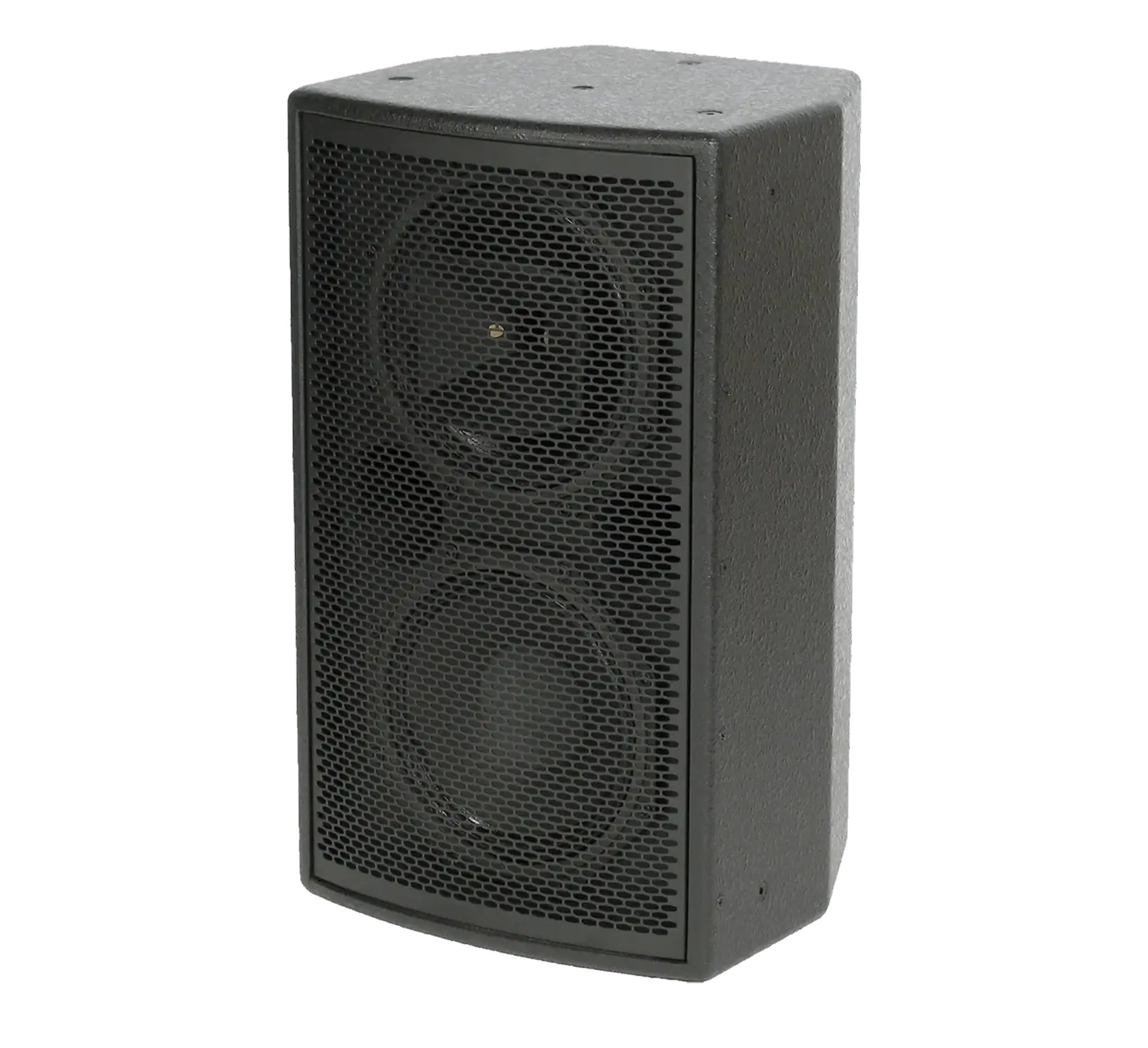

DX896
Dual 8” Coaxial Loudspeaker
Coverage Pattern
90° x 60° rotatable
Operating Range
72 Hz to 20 kHz
Transducers
8.0 inch ceramic magnet woofer, 2.0 inch voice coil
HF/LF Transducers
Coaxial 1.7 inch titanium diaphragm compression driver; 8.0 inch woofer, 2.0 inch voice coil; single neodymium magnetPower Handling at Nominal
Impedance
HF/LF 500 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
130 dB / 124 dB
Dimensions (H x W x D)
19.75 in x 11.75 in x 11.03 in (502 mm x 298 mm x 280 mm)
Weight
31.0 lbs (14.1 kg)

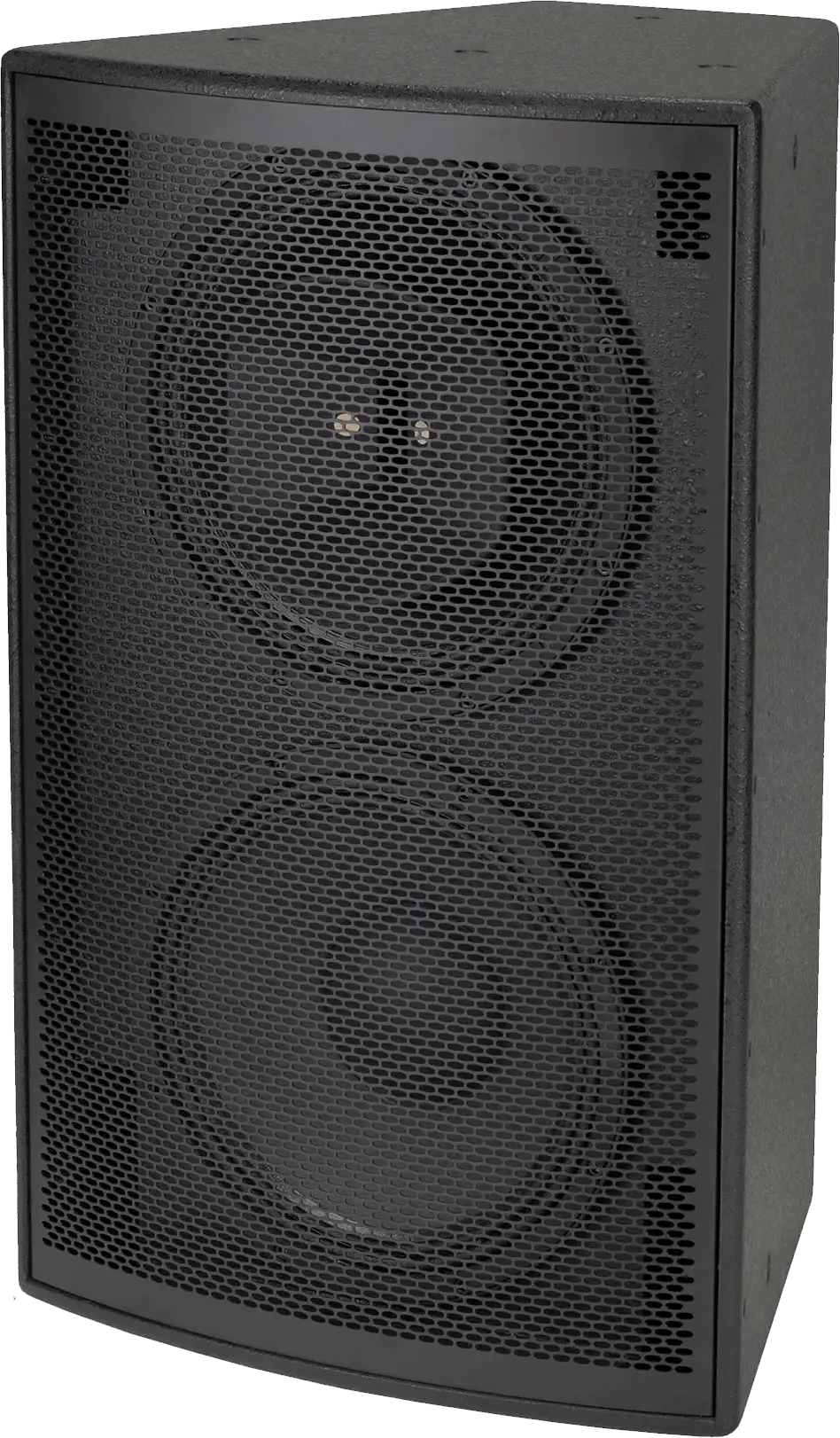

DX12
Dual 12” Coaxial Loudspeaker
Available Coverage Patterns
60° x 45°, 75° x 75°, 90° x 45°, or 120° x 60°
Operating Range
50 Hz to 20 kHz
LF Transducers
12.0 inch ceramic magnet woofer, 3.0 inch voice coil
HF/LF Transducers
Coaxial 3.0 inch titanium diaphragm compression driver; 12.0 inch woofer, 3.0 inch voice coil; single neodymium magnet
Power Handling at Nominal Impedance
LF 350 @ 8 Ω, HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
133 dB / 127 dB
Dimensions (H x W x D)
28.00 in x 17.99 in x 15.99 in (711 mm x 457 mm x 406 mm)
Weight
63.0 lbs (28.6 kg)
DX15
Dual 15” Coaxial Loudspeaker
Available Coverage Patterns
60° x 45°, 75° x 75°, 90° x 45°, or 120° x 60°
Operating Range
42 Hz to 20 kHz
LF Transducers
15.0 inch ceramic magnet woofer, 4.0 inch voice coil
HF/LF Transducers
Coaxial 3.0 inch titanium diaphragm compression driver; 15.0 inch woofer, 3.0 inch voice coil; single neodymium magnet
Power Handling at Nominal Impedance
LF 700 @ 8 Ω, HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
134 dB / 128 dB
Dimensions (H x W x D)
33.89 in x 20.84 in x 18.0 in (861 mm x 529 mm x 457 mm)
Weight
89.0 lbs (40.4 kg)
