DF Series
//
Dual High-Frequency Horn Loudspeakers
The DF Series provides high-output, focused coverage for mid- to long-throw applications. Designed for spot-fill, it’s especially effective when architectural elements obstruct the reach of primary loudspeakers, ensuring consistent clarity throughout the space.
TQ™ Processing
Optional Weather Resistance
Products in this Series

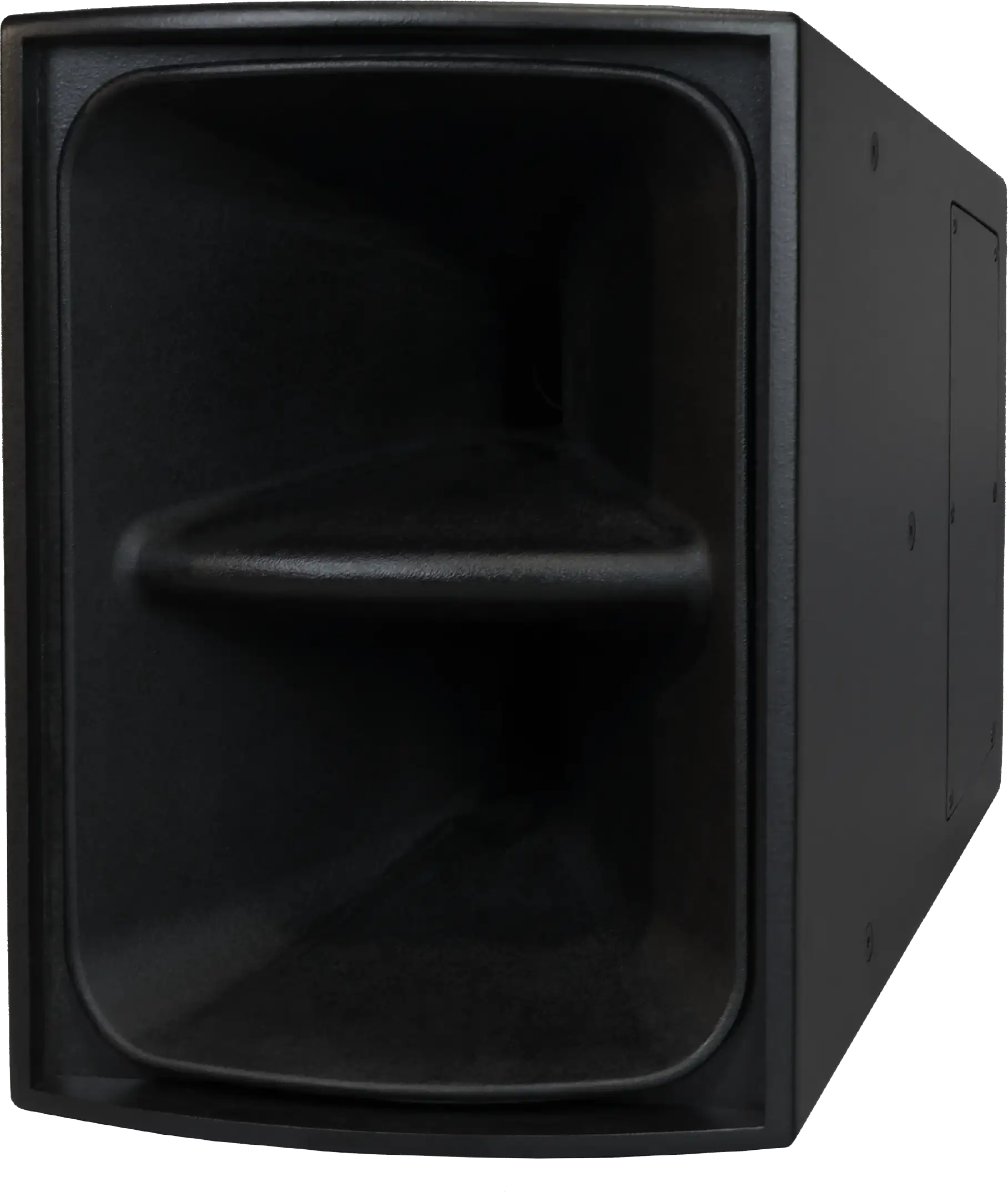

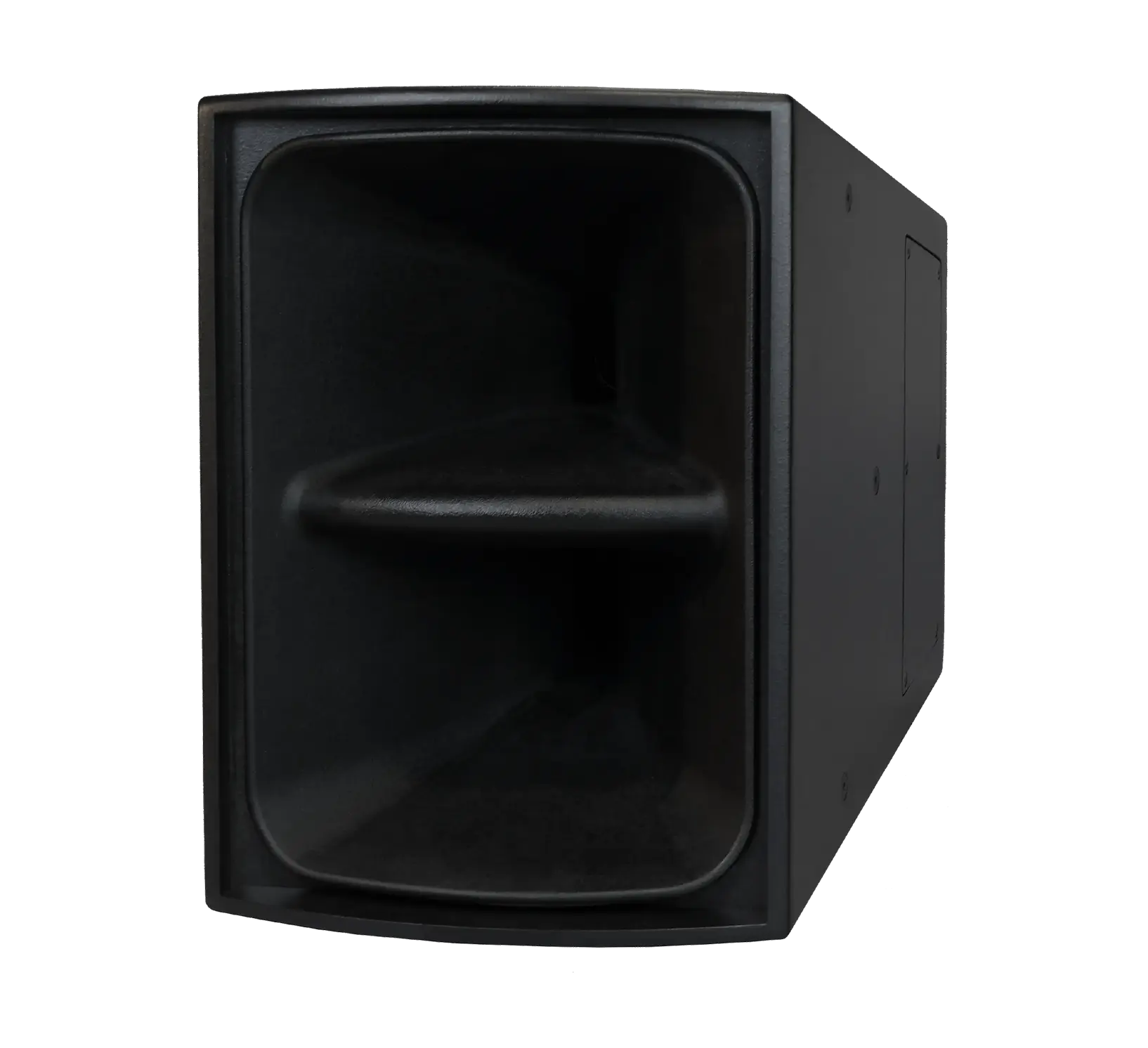

DF4
Dual High-Frequency Horn Loudspeaker
Available Coverage Patterns
60° x 30° or 45° x 30°
Operating Range
320 Hz to 20 kHz
HF Transducers
2x 4.0 inch titanium diaphragm, neodymium magnet compression driver
Power Handling at Nominal Impedance
400 W @ 4 Ω
Equalized Maximum SPL (peak / continuous)
145 dB / 139 dB
Dimensions (H x W x D)
23.09 in x 16.56 in x 25.00 in (586 mm x 421 mm x 635 mm)
Weight
56.0 lbs (25.4 kg)
