CX Series
//
2-Way, High-Performance Coaxial Loudspeakers
The CX Series offers high-output performance and tight pattern control in a compact enclosure. Its rotatable coaxial horn enables flexible coverage, making it ideal for applications that demand precise directionality and minimal visual impact.
TQ™ Processing
Rotatable Horn
Optional Weather Resistance
Products in this Series

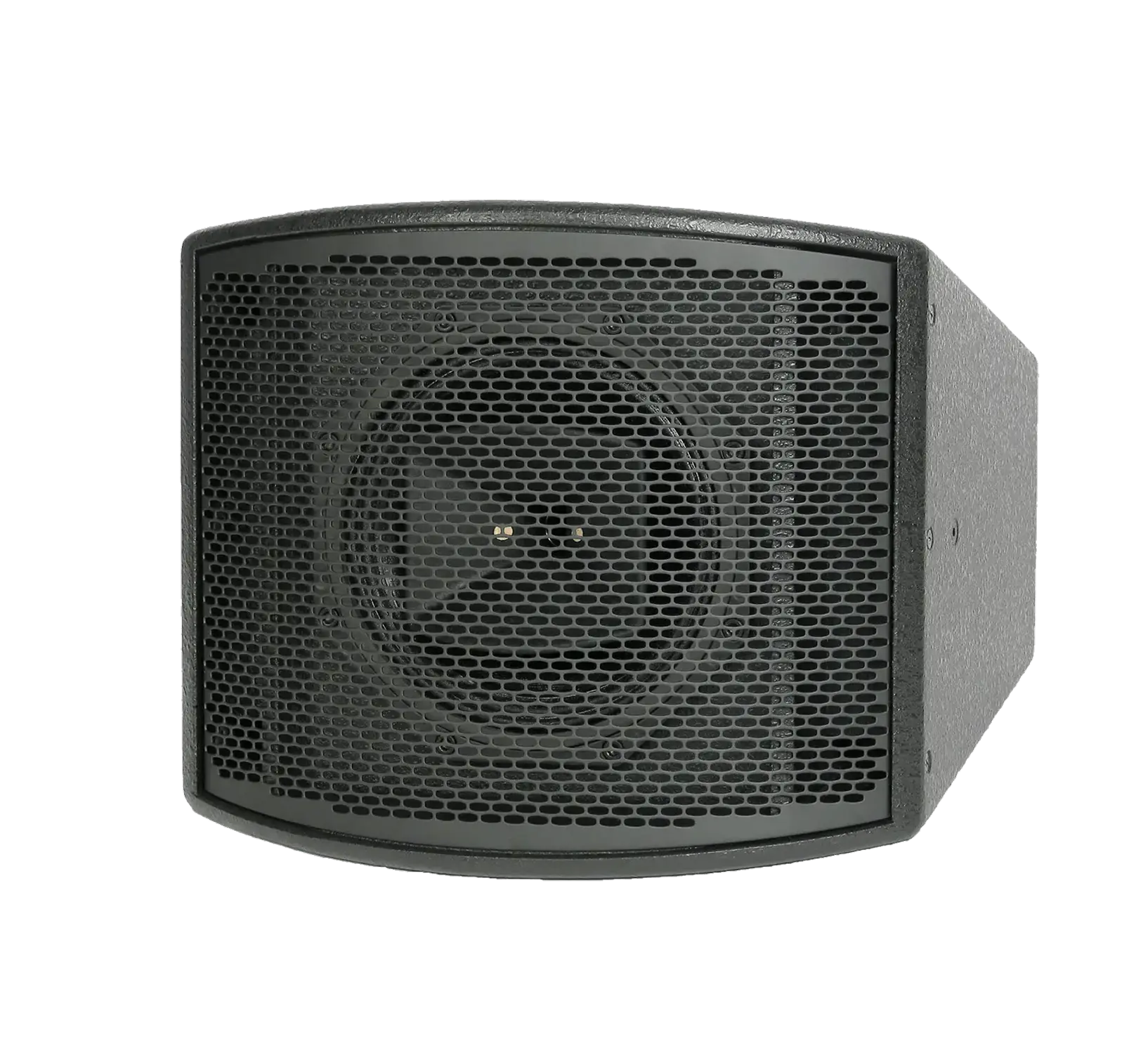

CX8
Compact 8” Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
CX12
Compact 12” Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB

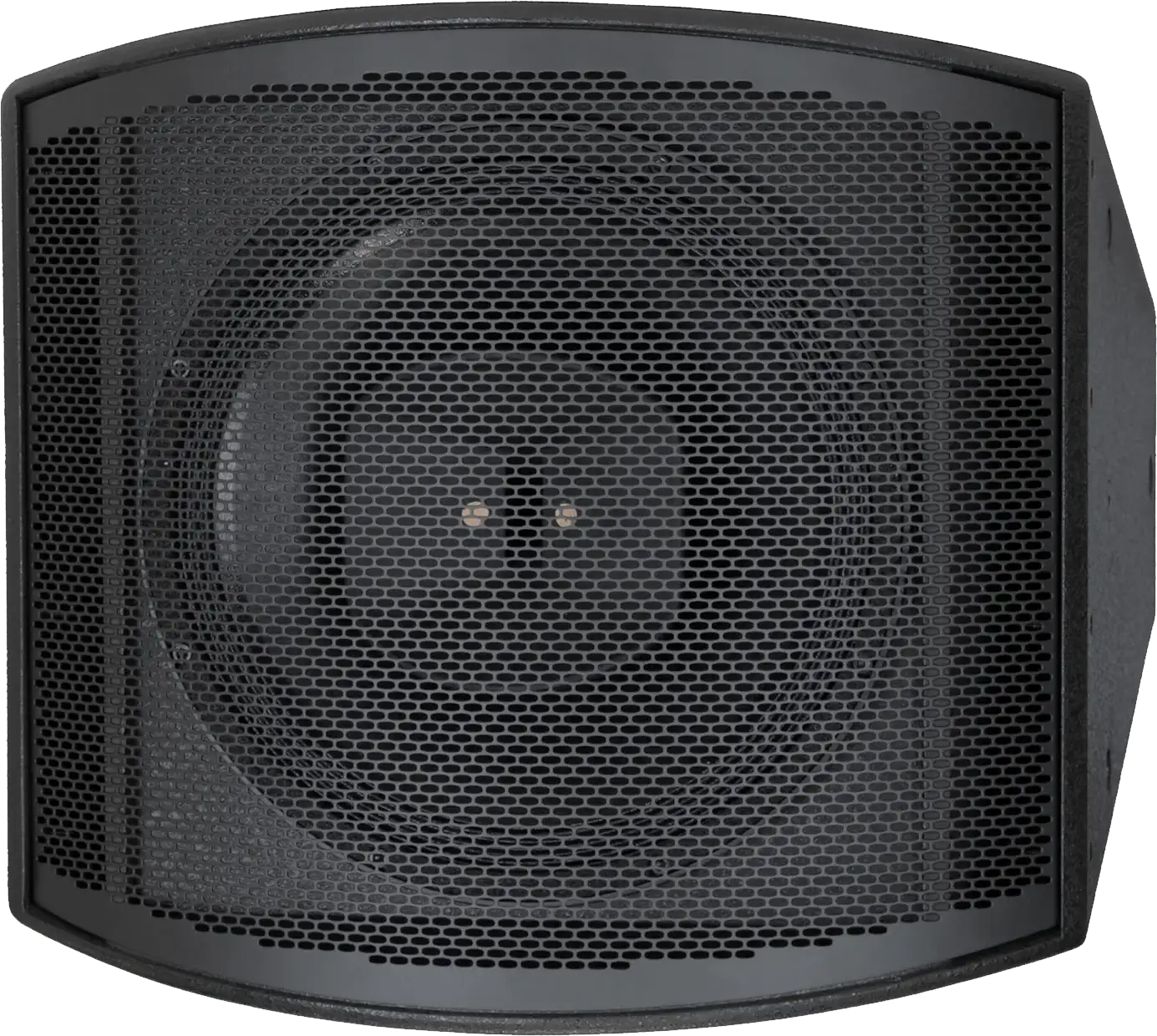

CX15
Compact 15” Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
Resources
CX8 Specification
Specification Sheet
CX8 CAD Data
CAD
CX8 Revit BIM Family
BIM
CX8 SketchUp
SketchUp
CX8 EASE Data
EASE Data
CX12 Specification
Specification Sheet
CX12 CAD Data
CAD
CX12 Revit BIM Family
BIM
CX12 SketchUp
SketchUp
CX12 EASE Data
EASE Data
CX15 Specification
Specification Sheet
CX15 CAD Data
CAD
CX15 Revit BIM Family
BIM
CX15 SketchUp
SketchUp
CX15 EASE Data
EASE Data
