CCX Series
//
Compact Coaxial Loudspeakers with Passive Cardioid Technology™
The CCX Series is compact and powerful, delivering high-output performance with precise pattern control. It is ideal for challenging acoustic environments that demand minimal visual impact. A rotatable horn supports flexible coverage angles, while Fulcrum’s Passive Cardioid Technology reduces rear low-frequency output, ensuring clarity and control in reflective spaces.
Passive Cardioid Technology™
TQ™ Processing
Optional Weather Resistance
Products in this Series
CCX8
Compact 8” Subcardioid Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB

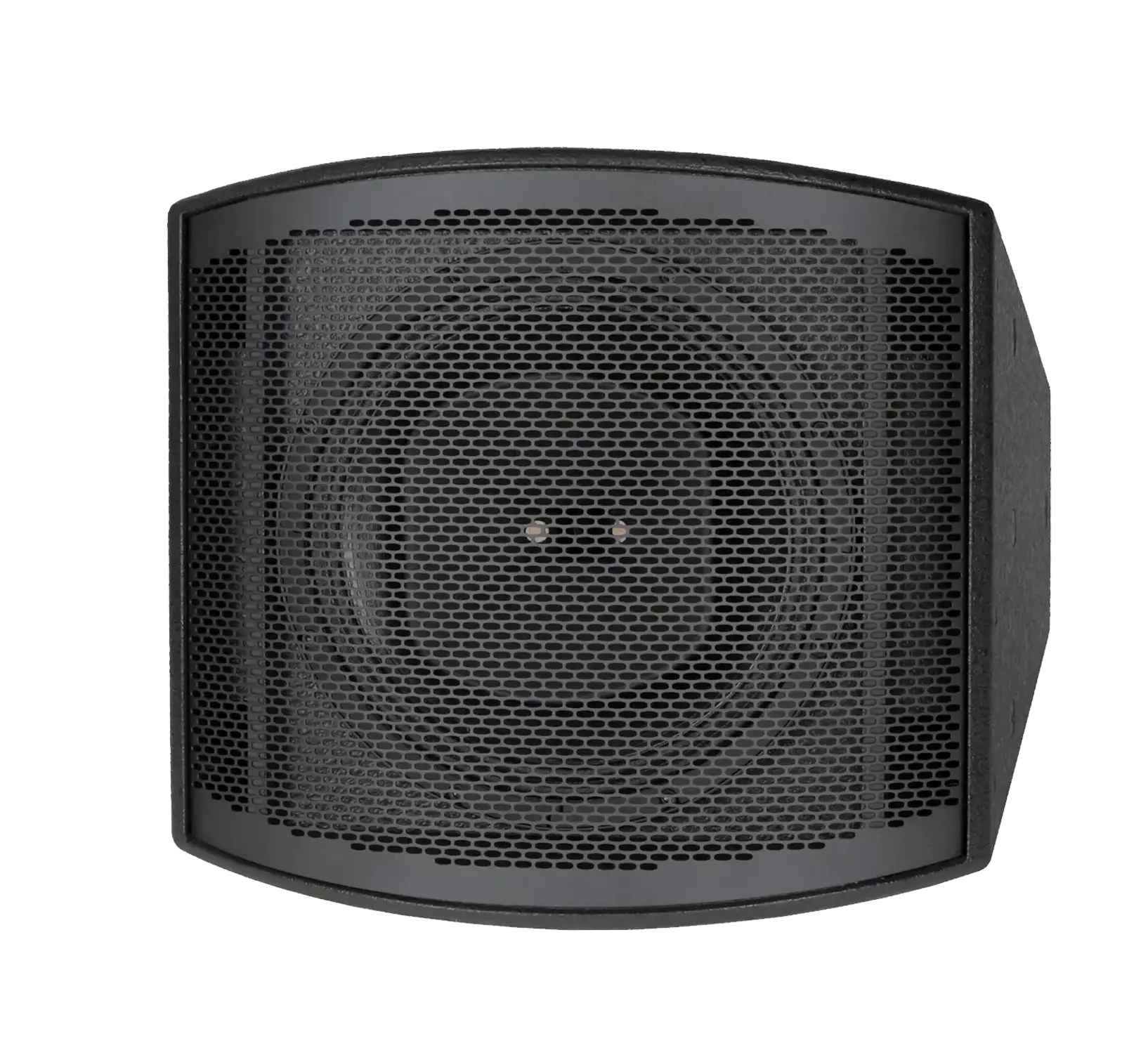

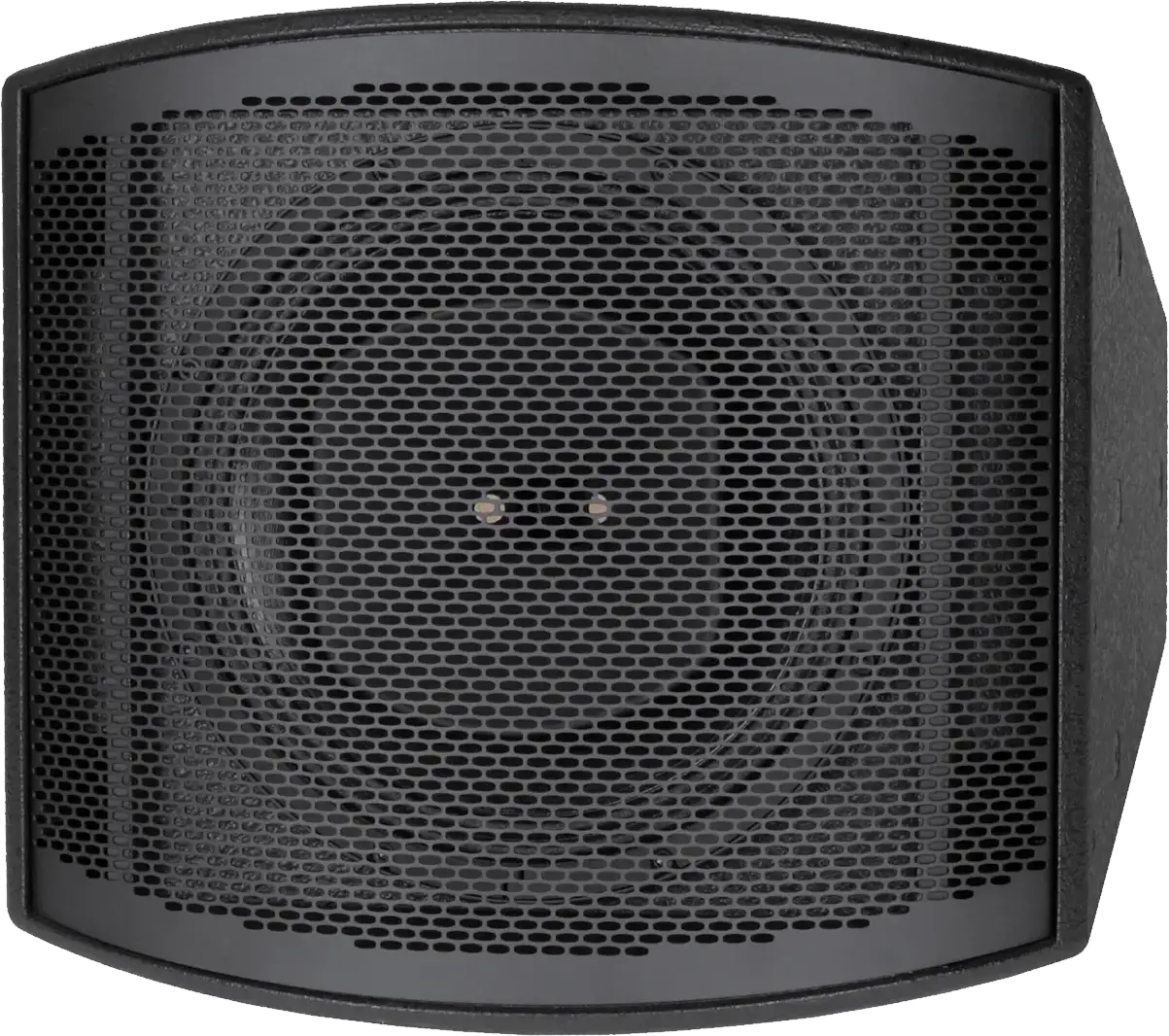

CCX12
12” Subcardioid Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
CCX15
15” Subcardioid Coaxial Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
