CC Series
//
Passive Cardioid Constant Curvature Array System

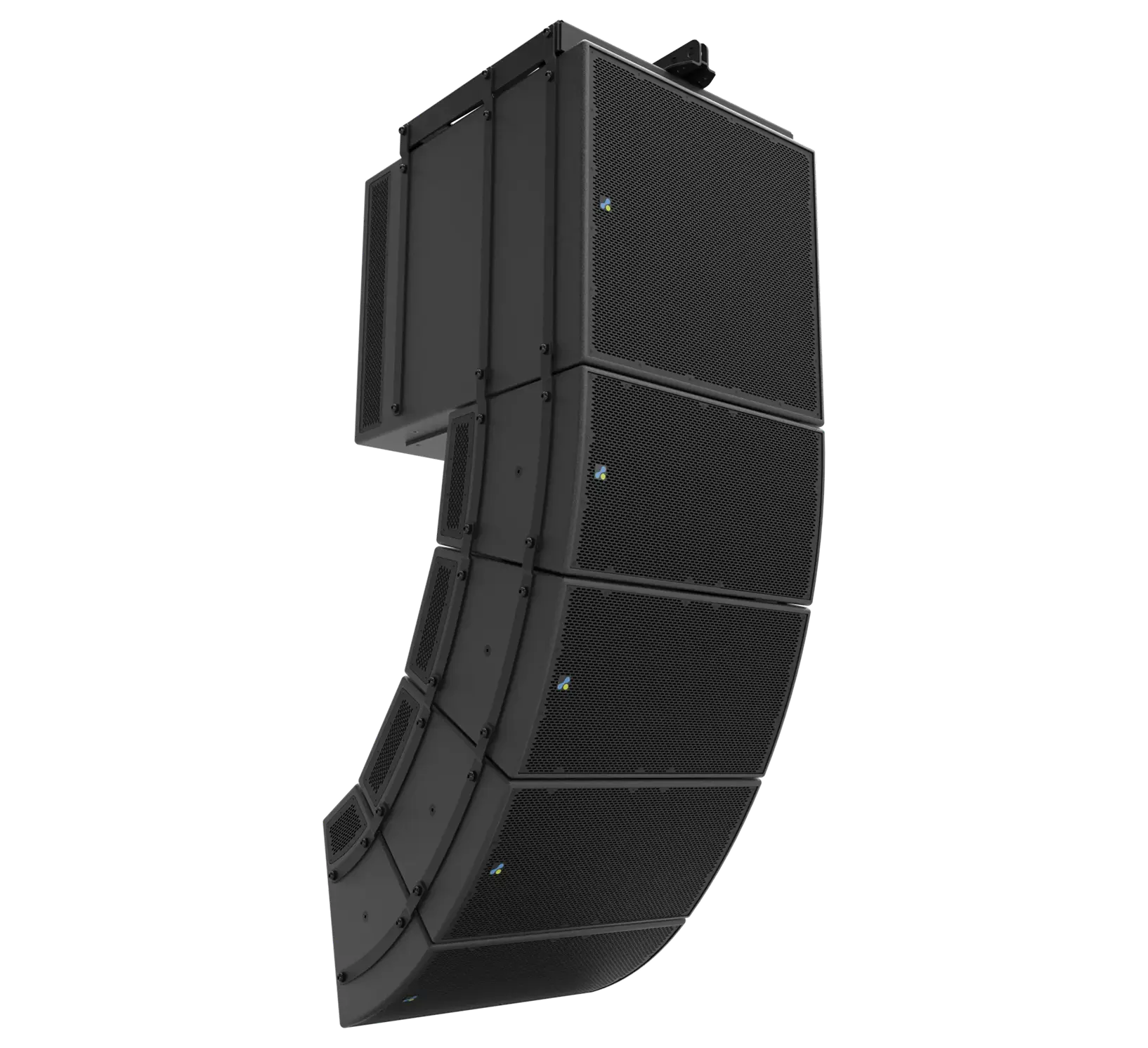

Fulcrum Acoustic’s CC series delivers exceptional versatility in a compact, easy-to-deploy system. With two 12-inch full-range loudspeakers offering 100° x 15° and 100° x 30° dispersion, the CC series supports vertical and horizontal arrays or single use. Fulcrum’s signature passive cardioid technology minimizes reflections and enhances clarity, all without extra amplifiers, DSP, or drivers. The system can be flown or ground-stacked with a matching 18-inch subwoofer.
Optional Weather Resistance
Array Optimization
TQ™ Processing
Passive Cardioid Technology™
Products in this Series
CCS18
18 inch Subcardioid Subwoofer
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
CC230
12 inch Subcardioid Constant Curvature Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
CC215
12 inch Subcardioid Constant Curvature Loudspeaker
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
Resources
CC215 and CC230 Specification
Specification Sheet
CCS18 Specification
Specification Sheet
CC Series CAD Data
CAD
