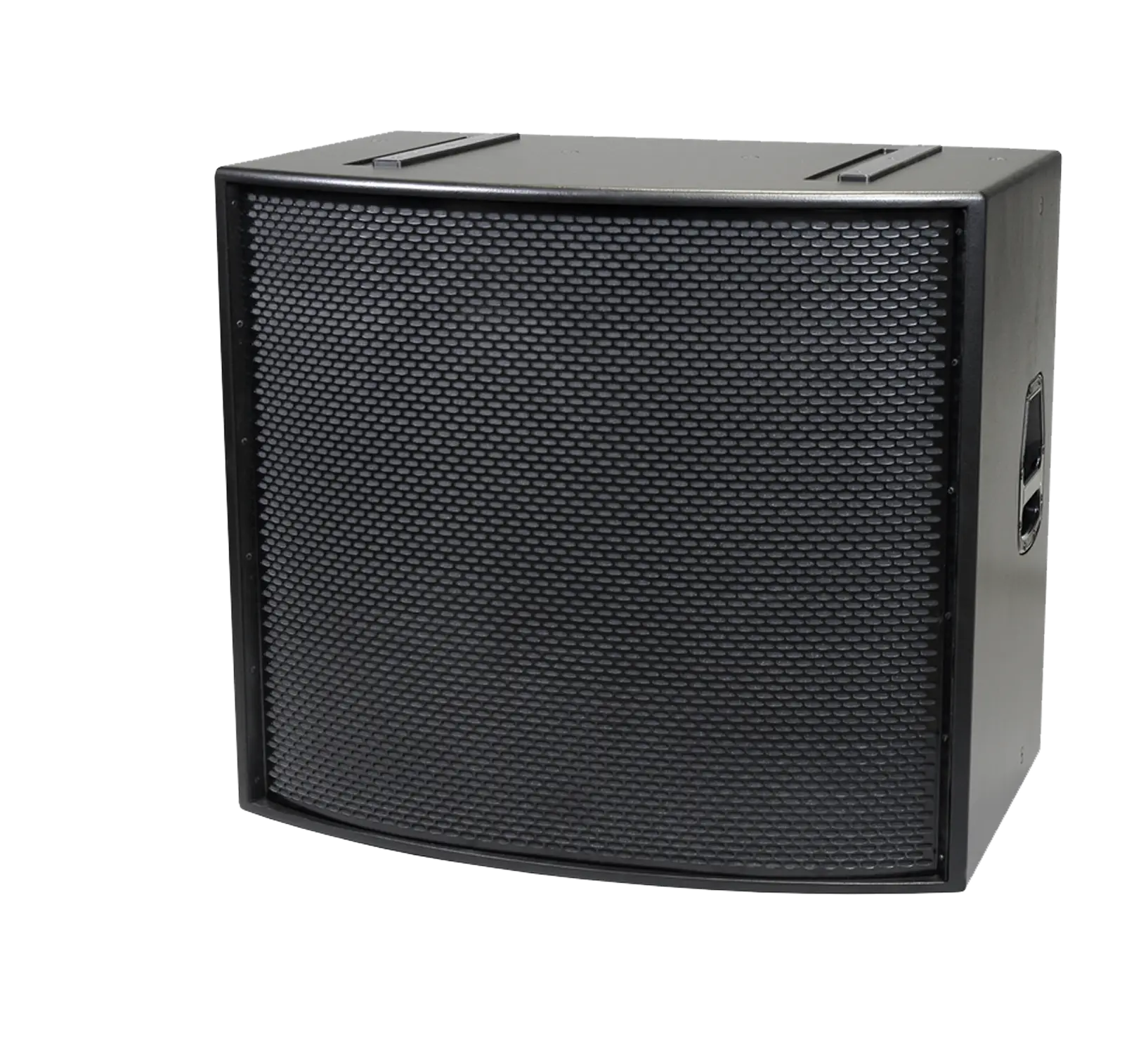

AHS Series
//
Large-Format, Digitally Configurable Coaxial Array System
The AHS Series offers a scalable solution for high-output environments requiring tight pattern control and precise coverage. Stackable modules form a single steerable array, with beam shaping and steering managed through TQ™ and Fulcrum One’s advanced processing tools. It’s a powerful integration of hardware and software that delivers exceptional intelligibility and control in even the most complex acoustic environments.
Array Optimization
Optional Weather Resistance
Products in this Series
AHS440
Digitally Configurable Coaxial Horn
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB

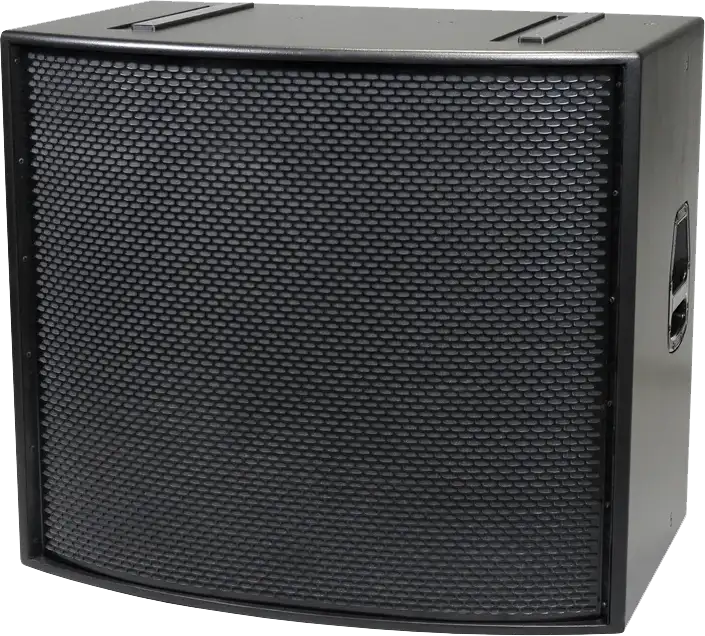

AHS460
Digitally Configurable Coaxial Horn
Operating Range
72 Hz to 20 kHz
HF/LF Transducers
Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling at Nominal Impedance
HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
128 dB / 122 dB
