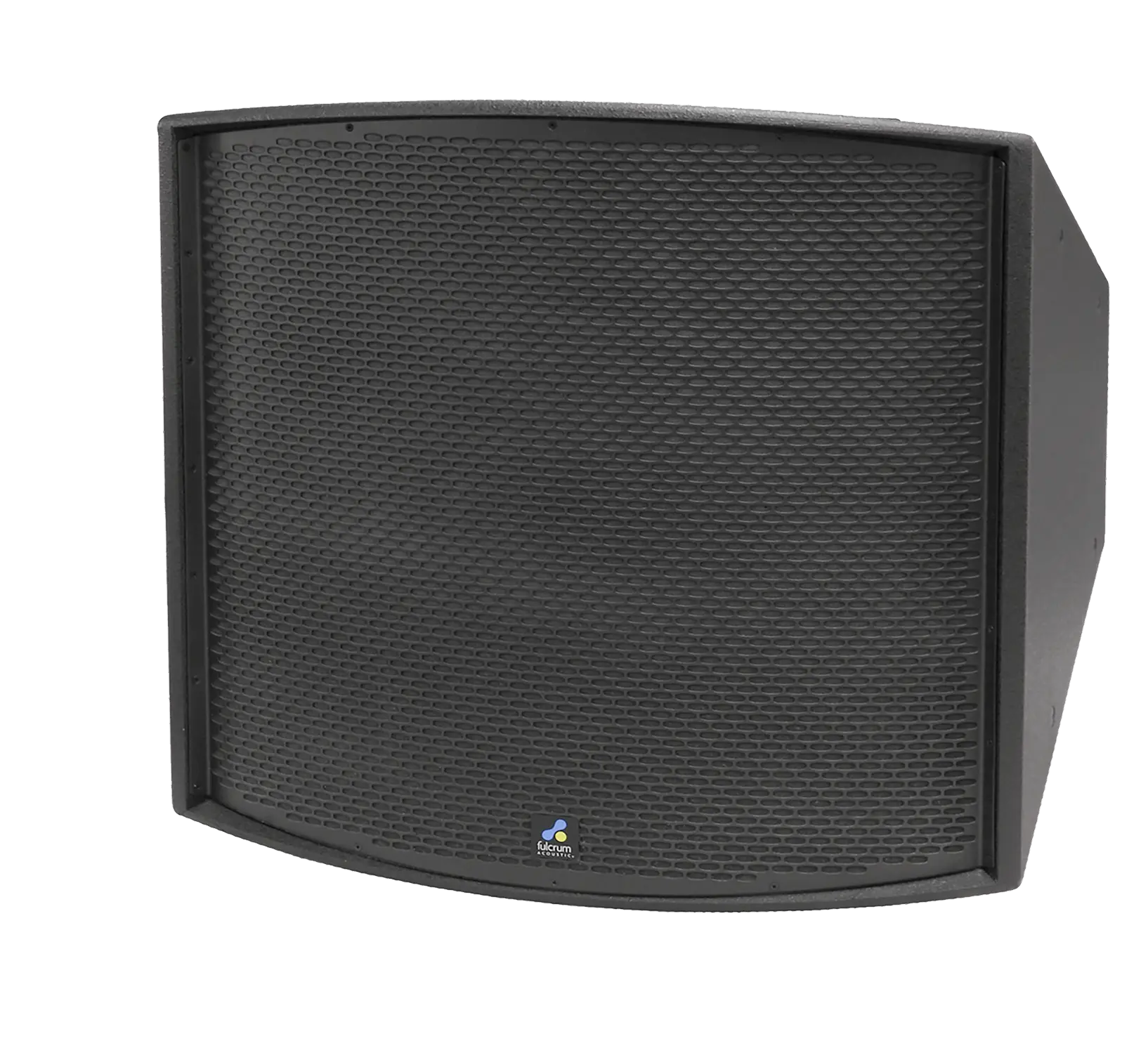

AHC Series
//
Bi-Amplified, 3-Way, High-Sensitivity Coaxial Horn Systems
The AHC Series is a high-output solution for environments where extended low-frequency performance and precise pattern control are beneficial. These coaxial horn systems deliver powerful output while using modest power, making them ideal for efficient, scalable system designs. Trapezoidal enclosures support both horizontal and vertical use in arrays or standalone setups.
Optional Weather Resistance
Products in this Series

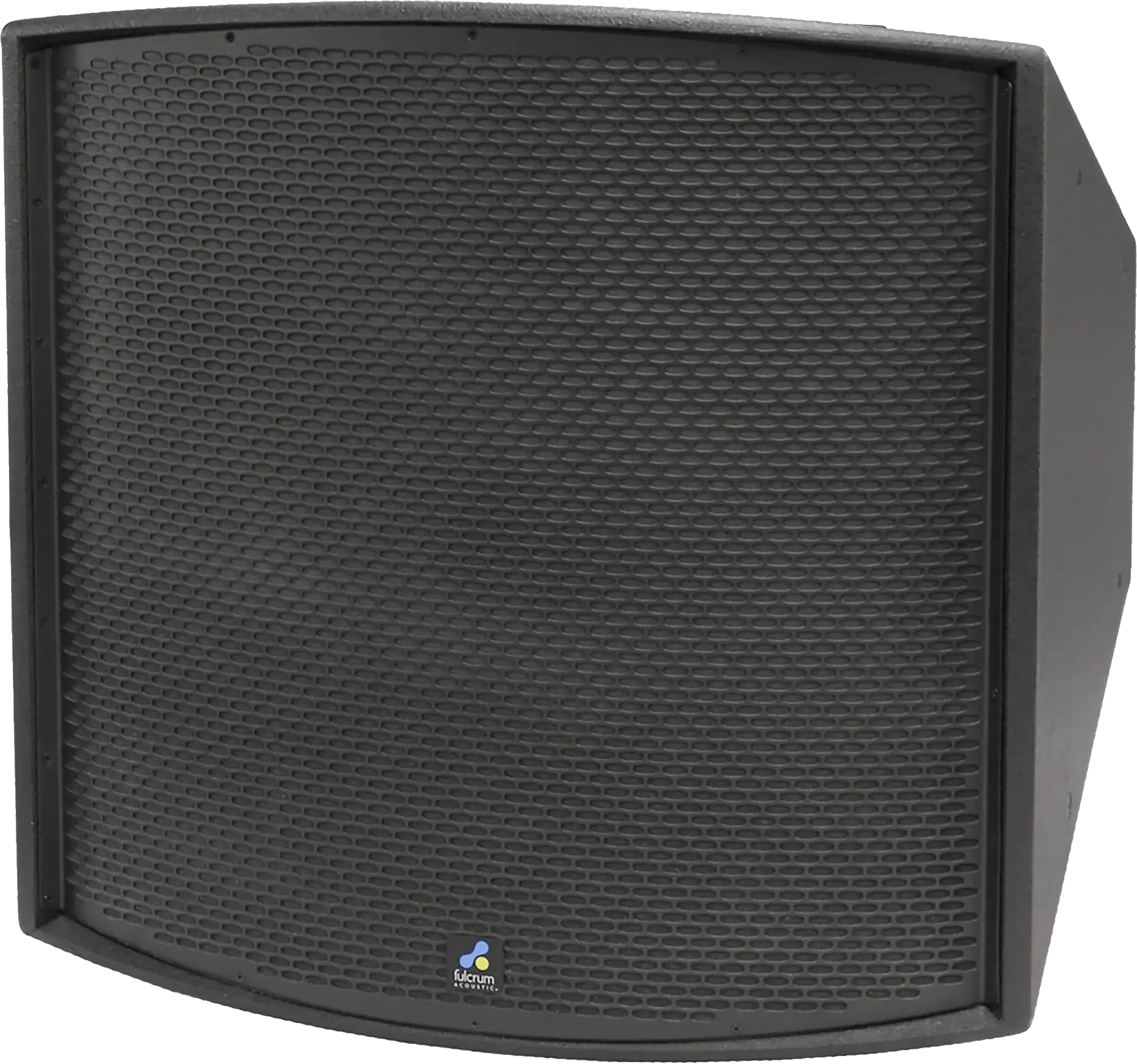

AHC2
High Output Solutions
Available Coverage Patterns
60° x 45°, 60° x 60°, 90° x 45°, and 90° x 60°
Operating Range
75 Hz to 19 kHz
LF Transducers
2x 10.0 inch neodymium magnet, dual 3.5 inch voice coil cone drivers
HF Transducers
4.0 inch / 2.5 inch voice coil coaxial ring radiator compression driver
Power Handling at Nominal Impedance
LF 1600 W @ 8 Ω, HF 300 W @ 8 Ω
Equalized Maximum SPL (peak / continuous)
143 dB / 137 dB
Dimensions (H x W x D)
32.0 in x 32.0 in x 27.71 in (813 mm x 813 mm x 704 mm)
Weight
126.0 lbs (57.2 kg)

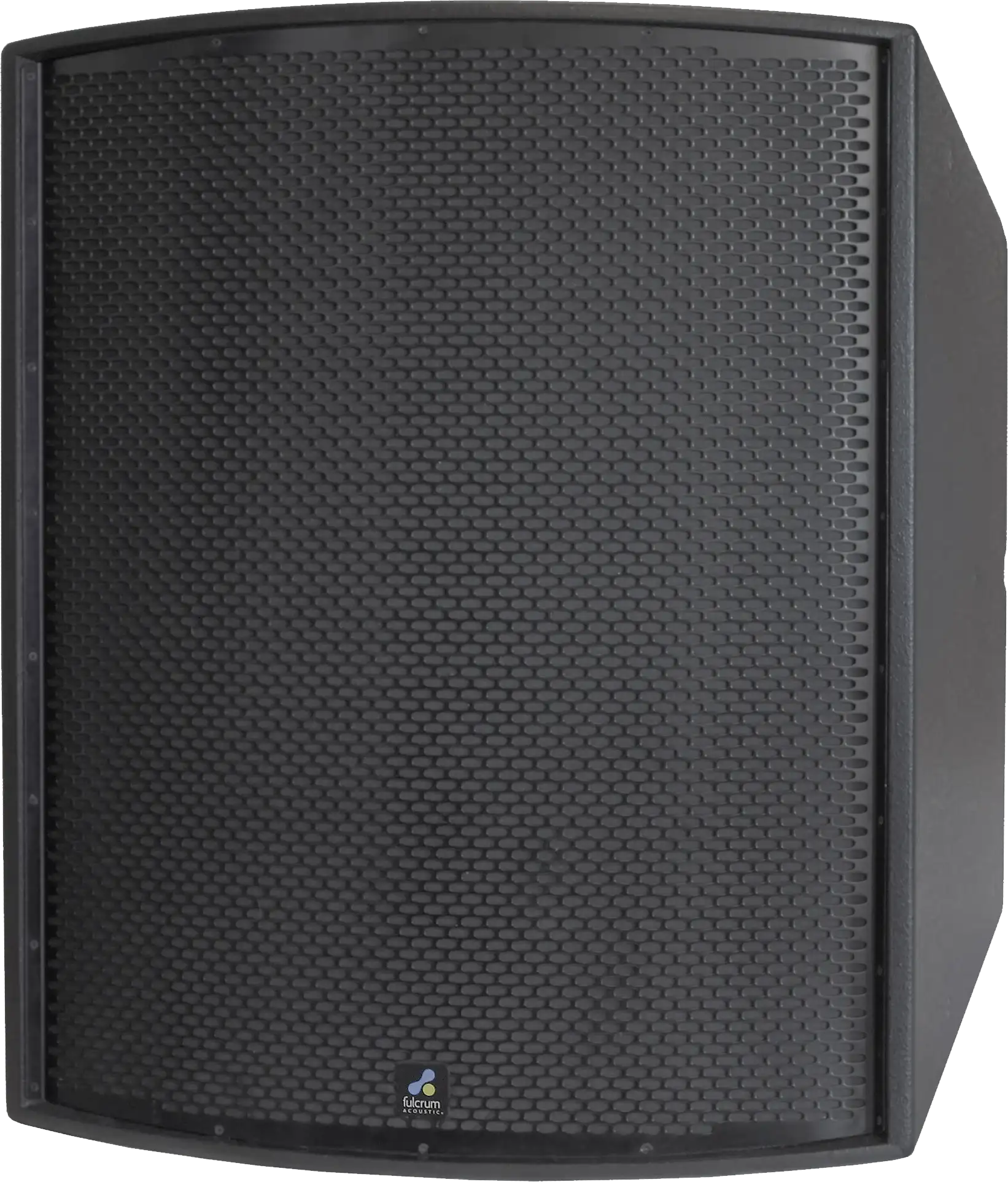

AHC4
Very High Output Solutions
Available Coverage Patterns
60° x 30° and 45° x 30°
Operating Range
68 Hz to 18 kHz
LF Transducers
4x 10.0 inch neodymium magnet, dual 3.5 inch voice coil cone drivers
HF Transducers
2x 4.0 inch / 2.5 inch voice coil coaxial ring radiator compression drivers
Power Handling at Nominal Impedance
2x LF 1600 W @ 8 Ω, 1x HF 600 W @ 4 Ω
Equalized Maximum SPL (peak / continuous)
150 dB / 144 dB
Dimensions (H x W x D)
39.0 in x 32.0 in x 28.67 in (991 mm x 813 mm x 728 mm)
Weight
186.0 lbs (84.4 kg)
