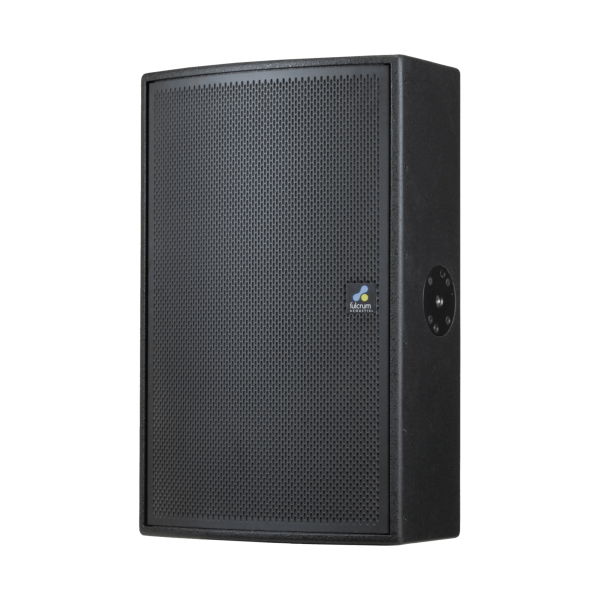

FA22 Dual 12″ Coaxial Loudspeaker

SKU: FA22 Dual 12" Coaxial Loudspeaker Product Series:

A portable, 3-way multi-purpose loudspeaker. Its rotatable horn provides broad coverage that is beneficial in both stage monitor and mains operation. Its multi-faceted enclosure includes a pole mount socket, 40° and 55° rear angles for stage monitor use, and M10 threaded accessory plates for use with optional suspension hardware.

FA22 Dual 12" Coaxial Loudspeaker

90° x 45° Coverage Pattern
  • Operating Mode: Bi-amplfied w/ DSP
  • Operating Range: 44 Hz to 20 kHz
  • LF Transducers: 12.0” single neodymium magnet woofer, 3.0” voice coil
  • HF/LF Transducers: Coaxial 3.0” titanium diaphragm compression driver; 12.0” woofer, 3.0” voice coil; single neodymium magnet
  • Power Handling at Nominal Impedance: LF 400 W @ 8 Ω, HF/LF 400 W @ 8 Ω
  • Equalized Maximum SPL (peak / continuous): 130 dB / 124 dB
  • Dimensions (W x D x H): 17.9 × 14.8 × 28.0 in
  • Weight: 55.0 lbs
The FA22 is a portable 3-way coaxial loudspeaker that is well suited for a variety of sound reinforcement applications. Its neodymium coaxial transducer and 90° x 45° horn provide broad coverage that is beneficial in both stage monitor and mains operation, and its dedicated neodymium low frequency transducer provides additional low frequency directivity and mid bass impact. Its multi-faceted, enclosure includes a pole mount socket, 40° and 55° rear angles for stage monitor use, and M10 threaded accessory plates for use with user-supplied suspension hardware. The compact enclosure is vertically-oriented, but if a horizontal orientation is desired, it can be easily obtained by exchanging the pole socket with one of the M10 accessory plates and rotating the coaxial transducer to provide appropriate coverage angles.

Fulcrum Acoustic’s TQ™ processing is an integral part of the FA22 design. Sound, innovative acoustical design combined with state of the art digital processing leads to exceptional clarity and precise transient response, even at very high sound pressure levels. The required digital signal processing can be provided by one of many supported platforms. Free air and stage monitor presets are available for all platforms.

The FA22’s unique TQPassive™ internal crossover is designed to work in conjunction with TQ™ processing. It provides the high efficiency, excellent damping, and precise directional control normally associated with tri-amplified operation, but it does not require a third amplifier and processor channel. There are no resistive components in the crossover to heat up, so its response remains consistent even at high levels.

The FA22ac’s versatility, high performance, and aesthetic appeal make it a compelling choice for A/V rental companies, live performance venues, corporate A/V, nightclub PA, theatrical productions, and more.
