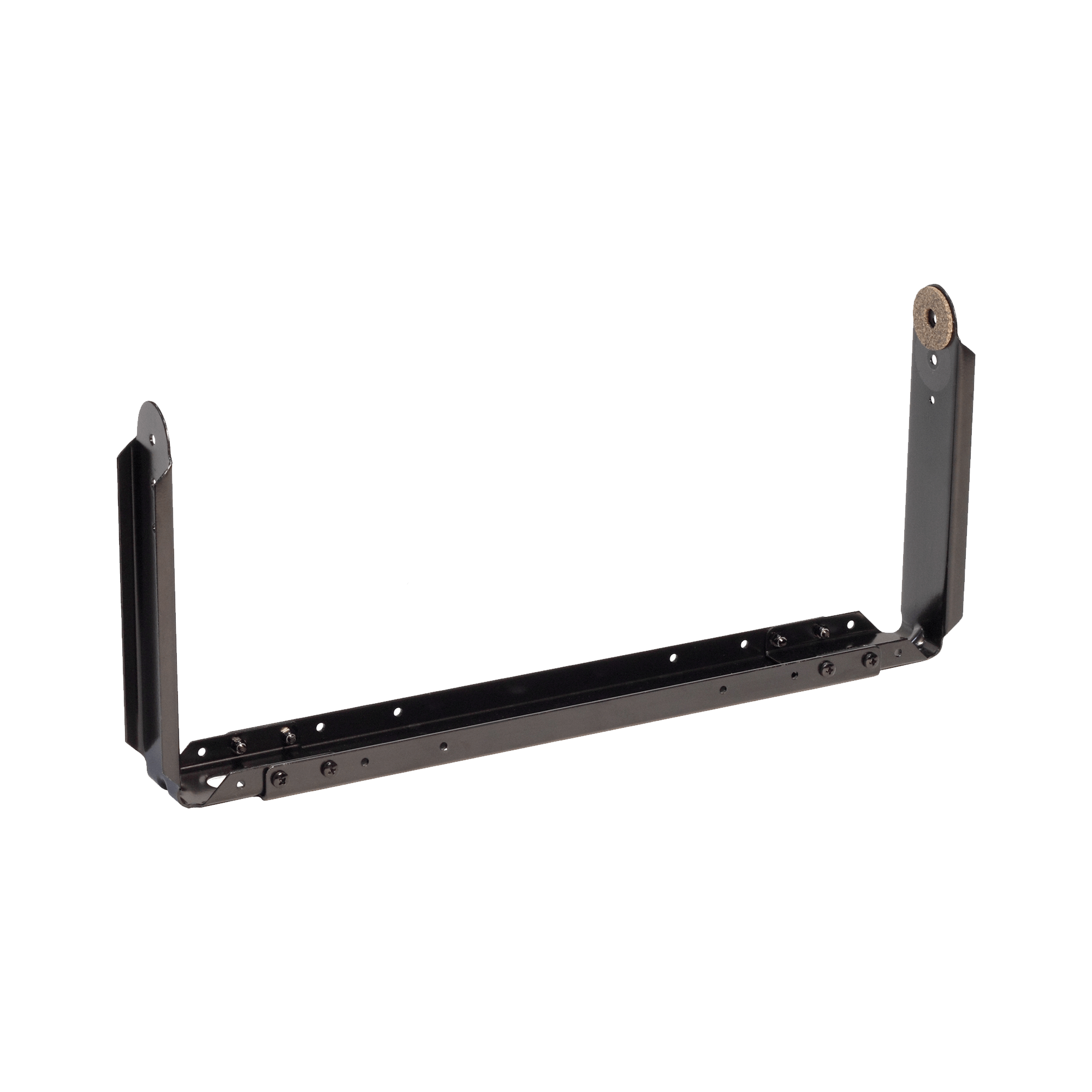

YK2008 Yoke Bracket

Product Series:

Open the mechanical drawing for this bracket.

YK Series brackets are designed to allow for the lowest-possible profile when installed. However, certain DX896 tilt angles or orientations may not be possible when the loudspeaker has standard NL4 input connectors installed. This drawing illustrates the range of angles a DX896 may be rotated through when NL4 connectors are installed.
